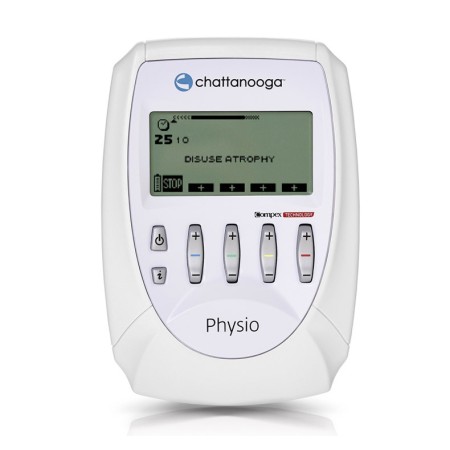

The Chattanooga Physio Professional Electrostimulator with Compex Technology is an advanced 4-channel device designed for a wide range of electrotherapy applications. It offers programs for TENS/NMES, neurology, ACL, denervation, iontophoresis, hyperhidrosis, urology, and edema prevention, with an Optimum program configuration.

Muscle Intelligence technology

The device is Mi-Ready, with Mi technology built into all 4 channels and includes 2 Mi cables. Muscle Intelligence features are automatically activated when the Mi cable is connected.

• Mi-Scan: Adapts stimulation parameters for each patient and session.
• Mi-Action: Allows the integration of electrotherapy with the patient's active exercise.
• Mi-Tens: Adjust the intensity to avoid unwanted contractions during pain therapy.
• Mi-Range: Indicates the optimal intensity levels for muscle contractions in low-frequency programs.

Trigger Function

Start a phase of voluntary work according to the required protocols, such as for hemiplegic foot and spasticity.

2+2 Channels or 2+TENS

It allows you to choose different programs for channels 1 and 2 versus channels 3 and 4, allowing treatments on two different body parts or patients, or combining TENS and NMES.

Skip

Tool included to optimize electrode placement.

Motor Point Pen

Helps find the optimal placement of the electrodes.

I-Button

Adjust the intensity on all channels, access your favorite programs and check statistics during your sessions.

Pause Mode

Pauses stimulation to reposition the electrodes.

Programmability

It allows the creation and customization of programs based on the patient's needs.

Autonomy and Fast Charging

It offers daily autonomy with a full charge cycle in maximum 2 hours and 30 minutes.

Plug-Button Cables and Adapters

Includes 4 cables with plug and snap adapters to connect various types of electrodes.

• Medical Device: Class IIa
• Electrical protection: IP22
• Electrical safety class: Class II, type BF
• Complies with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10
• Battery: Rechargeable nickel-metal hydride (NiMH) 4.8 V 2000 mA/h
• Charger: Compatible only with code 68301X
• Neurostimulation programs: Rehab, Theta, and Physio devices
• Channels: Four independent and adjustable channels
• Pulse shape: compensated constant rectangular current
• Maximum pulse intensity: 120 mA
• Pulse intensity increments: from 0 to 999 (energy) with minimum increments of 0.25 mA
• Pulse width: 30 to 400 µs
• Maximum electric charge per pulse: 96 microcoulombs
• Standard pulse ramp time: 3 µs
• Pulse frequency: 1 to 150 Hz
• Dimensions: 138 x 95 x 33 mm
• Weight: 300g including battery

Denervated Muscle

• Pulse shape: compensated, rectangular or triangular
• Maximum pulse intensity: 30 mA
• Minimum intensity increase: 0.25 mA
• Pulse width: 10 µs - 100 µs
• Pulse frequency: 1/30 Hz - 10 Hz

Iontophoresis, Hyperhidrosis

• Pulse shape: direct current
• Maximum intensity: 20 mA
• Minimum intensity increase: 0.125 mA
• Edema: rectangular current, uncompensated
• Pulse width: 150 µs
• Maximum intensity: 120 mA
• Minimum intensity increase: 1 mA
• Pulse frequency: 100 Hz

Equipment

• Physio Device
• Quick charger
• Drums
• Set of 4 pin cables
• Snap-on adapter kit
• 4 Mi Cable
• Protective shell
• 2 Packs of small electrodes (5x5 cm 1 snap)
• 2 Packs of large electrodes (5x10 cm 2 snaps)
• Ultra-flexible electrode set for denervated muscles
• Iontophoresis electrode set
• User manual and practical guide on CD/USB
• Quick start guide + warning booklet
• Electrode placement booklet
• Gel bottle
• Motor point pen
• Briefcase
• Belt clip
