The Chattanooga Rehab is a 4-channel electrostimulator designed for physiotherapists and rehabilitation clinics. Ideal for standard use, it offers simple programs for pain management, treatment of vascular disorders and muscle stimulation, meeting the main needs of healthcare professionals.

Muscle Intelligence technology:
- Mi-Ready with Mi technology on all 4 channels, includes 2 Mi cables
- Mi-Scan: Adapts stimulation parameters for each patient and session
- Mi-Action: Integrates electrotherapy into treatments with the patient's active participation
- Mi-Tens: Continuous intensity control to prevent unwanted contractions
- Mi-Range: Indicates the optimal intensity level to improve muscle contractions
- Trigger function: Starts a voluntary work phase according to the protocols
- 2+2 channels or 2+Tens: Allows different programs for channels 1 and 2 compared with channels 3 and 4, enabling simultaneous or combined treatments
- Skip: Tool for finding the optimal electrode placement
- Motor point pen: Helps with optimal electrode placement
- I-Button: Adjusts the intensity on all channels, accesses favorite programs and monitors statistics during sessions
- Pause mode: Pauses stimulation to reposition the electrodes
- Programmability: Creation and customization of patient-specific programs
- Battery life and fast charging: All-day battery life with a full recharge in 2h30
- Cables and adapters: Equipped with 4 pin cables and snap adapters for different types of electrodes
- Program configuration: Standard with 22 programs
- Benefits: Ability to work on several muscle groups simultaneously

Available programs:
- Rehabilitation I
- Pain relief I
- Vascular
- Physical preparation I

Indications:
- Hemiplegia
- Paraplegia/Tetraplegia
- Multiple sclerosis
- Chronic obstructive pulmonary disease
- Wrist/hand tendon rupture
- Carpal tunnel treatment
- Rotator cuff tendinopathy
- Shoulder instability
- Frozen shoulder
- Shoulder dislocation
- Postoperative care following Bankart/Latarjet lesion
- Tendinopathies (Achilles tendon, patellar tendon and hip)
- Sprains (ankle, knee and hip)
- Epicondylitis
- Periostitis
- Muscle tears
- Back pain

Contraindications:
- Refer to the product manual

Technical specifications:
- Medical device: Class IIa
- Electrical protection: IP22
- Electrical safety class: Class II, type BF
- Complies with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10
- Battery: Rechargeable nickel-metal hydride (NiMH) (4.8 V 2000 mA/h)
- Battery charger: Compatible only with code 68301X
- Neurostimulation programs: Rehab, Theta and Physio devices
- Channels: Four independent channels, each adjustable separately
- Pulse waveform: Constant compensated rectangular current
- Maximum pulse intensity: 120 mA
- Pulse intensity increments: From 0 to 999 in minimum increments of 0.25 mA
- Pulse width: From 30 to 400 µs
- Maximum electrical charge per pulse: 96 microcoulombs (2x48 µC, compensated)
- Standard pulse ramp time: 3 µs (20%-80% of maximum current)
- Pulse frequency: From 1 to 150 Hz
- Dimensions: 138 x 95 x 33 mm (Height x Width x Depth)
- Weight: 300 g including battery

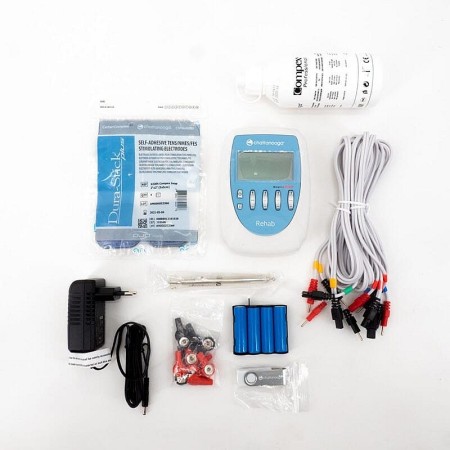

Package contents:
- Rehab device
- Fast charger
- Battery
- Set of 4 pin cables
- Snap adapter set
- Protective case
- 2 packs of small electrodes (5x5 cm 1 snap)
- 2 packs of large electrodes (5x10 cm 2 snap)
- User manual and practical guide on CD/USB
- Quick start guide + warnings booklet
- Electrode placement booklet
- Motor point pen
- Carrying bag
- Belt clip

This device is a Class IIa Medical Device bearing the CE mark, assessed by the notified body BSI and manufactured by DJO France. Read the instructions carefully.
