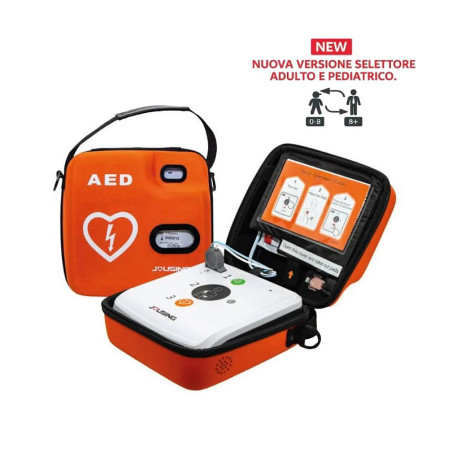

Jousing Medical's iAED-S1 P 2026 Semi-Automatic External Defibrillator is designed to offer reliable, high-quality support in emergency situations. Featuring a compact and streamlined design, the device features pre-connected universal plates and a selector switch for use on adult or pediatric patients. Powered by a high-capacity battery with a 5-year or 300-discharge life, the iAED-S1 is backed by a 5-year warranty. It is suitable for use on adult and child patients weighing more than 25 kg or over 8 years of age, as well as pediatric patients weighing less than 25 kg or aged 0-8 years. Ideal for indoor, outdoor and hospital environments, it can be used by healthcare professionals or non-experts.

The device automatically analyzes the patient's ECG to detect the presence of a shockable rhythm, guiding the operator through the procedure with audio-visual commands. If a shockable rhythm is detected, the device automatically charges and the shock is emitted when the operator presses the shock button. Supplied with a rigid carrying bag, the device includes pre-attached universal plates for quick and efficient use.

The iAED-S1 performs self-tests at daily, weekly, and monthly intervals, alerting you to any errors or low battery via a flashing status indicator and audible signals. Resistant to drops from 1.22 meters and designed to withstand splashes, drops, and dust thanks to its IP55 rating, the device records operating data to internal memory, including ECG data, events, and self-tests.

Technical features:
- Operation mode: Semi-automatic
- Waveform: BTE - Truncated Exponential Biphasic
- Use: Adult and Child weighing more than 25 kg or older than 8 years - Pediatric weighing less than 25 kg or aged 0 to 8 years
- Adult and Child Discharge Energy: 150 J nominal (±10%) into 50 ohms
- Step discharge energy Adult and Child: 150J-150J-150J
- Pediatric discharge energy: 50 J nominal (±10%) into 50 ohms
- Pediatric discharge energy step: 50J-50J-50J
- Impedance: Does not deliver discharge if ≤ 20Ω or ≥ 200Ω
- User interface: Voice prompts, sound alerts and light indications
- Charging time: ≤7s with new battery
- Size: 198mm×197mm×67mm
- Weight: 2 kg (with battery and plates)
- Protection class: IP55

Environmental conditions:
- Temperature and relative humidity: Operating: 0°C~50°C, 5%~95%RH (non-condensing); Standby: 5°C~35°C, 5%~95%RH (non-condensing); Storage/Shipping: -30°C~65°C up to 24 hours, 5%~95%RH (non-condensing)
- Elevation: 0 to 15000 feet
- Atmospheric pressure: 480 hPa to 1060 hPa
- Shock/drop tolerance: 1.22 meters

Battery:
- Duration: 5 years
- Maximum number of discharges: 300
- Type: 12VDC, 4.2Ah, LiMnO2 battery
- Capacity: ≥300 discharges at 20°C±2°C, ≥100 discharges at 0°C±2°C
- Battery life: 300 shocks or 18 hours of ECG monitoring
- Plate maturity: 29-30 months

Defibrillation pads:
- Type: Self-adhesive pregelled, disposable, latex-free
- Cable length: 120cm±12cm
- Active gel surface: 100cm²±10cm², each

Communication and documentation:
- Data Transfer: JouReview Software
- Communication: Bluetooth
- Documentation: ECG data, event log, self-test data
- Internal memory: 40 minutes of ECG analysis, two complete events

Self-Test Program:
- Start, daily, weekly, monthly
- Manual Self-Test Function: When the battery is inserted

Certifications and warranty:
- Class (93/42/EEC): IIB
- Patient isolation type: BF
- Warranty: 5 years

Equipment:
- iAED-S1 unit
- LiMnO2 12V, 4.2A battery
- Pair of universal disposable plates (adults-children)
- Rigid carrying bag
- Verification report CEI 62-13 EN 60601-2-4
- User manual in Italian
