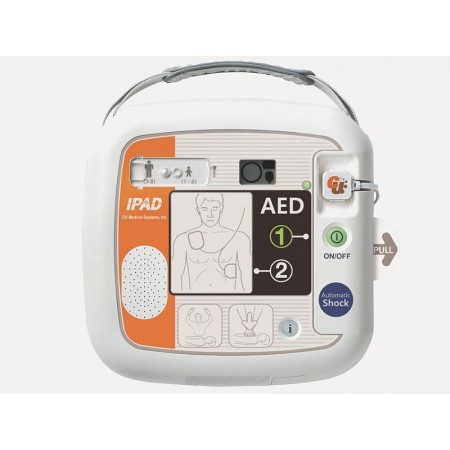

The iPAD CU-SP1 defibrillator represents the latest generation of devices for public use, designed to offer innovation and ease of use. This Automated External Defibrillator (AED) analyzes the electrocardiogram (ECG) to identify shockable rhythms such as Ventricular Fibrillation or Ventricular Tachycardia. If detected, the device automatically charges and releases an electric shock. Voice prompts and visual indicators guide the user throughout the rescue process.

Technical features:
- Mode: Automatic
- Waveform: Truncated Exponential Biphasic
- Power: Adult 150J at 50 ohms, Infant/Child 50J at 50 ohms
- Charge control: Automatic patient analysis system
- Charging time: <10 seconds
- Waterproof: IPX5
- Dust protection: IP5X
- Dimensions: 260x256x69.5 mm
- Weight: 2.4 kg

User Interface:
- User support: Voice prompts and flashing indicators
- CPR guidance: Voice prompts for CPR on adults and children
- Controls: On/off button, "i" button
- Indicators: LCD display for device status, battery, plates
- Sensors: Expiration date and plate connection status
- CPR monitoring
- Automatic volume adjustment

Data recording and transmission:
- IrDA port for communication with PC
- Internal Memory Capacity: 5 single events / Max 3 hours
- PC Program: CU-EX1

Patient analysis system:
- Shockable rhythms: ventricular fibrillation, tachycardia
- Sensitivity/specificity: AAMI DF80 compliant

Battery:
- Type: DC 12 Volt 4.2 Ah, LiMnO2
- Capacity: Minimum 200 discharges or 8 hours of operation

Operating Altitude Range:
- Elevation: 0-4,570 m (0-15,000 ft)

Equipment:
- Adult plates
- Transport bag
- Disposable lithium battery
- Paper manual (GB, IT)
- Multilingual manual on CD

The CU-SP1 features automatic volume adjustment that adapts to ambient noise, pre-connected plates for quick use, and a CPR detection system that guides the user through proper CPR execution. The CU-EX1 software allows for easy data analysis, improving device management and effectiveness.
