iPAD CU-SP1 DEFIBRILLATOR - semi-automatic

CU-SP1 is the latest generation of defibrillators for public use with innovative features.

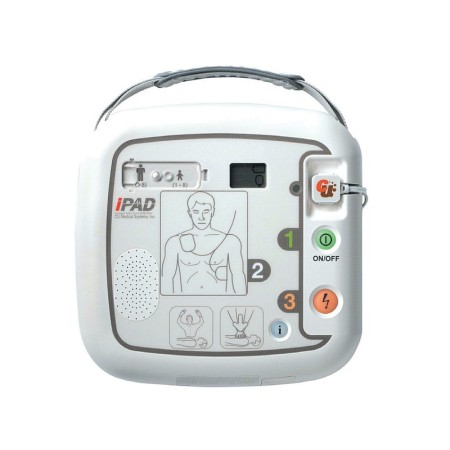

Semi-Automatic External Defibrillator (AED) CU-SP1
Battery-operated, semi-automatic external defibrillator that is easy to use, compact, lightweight, and portable. The AED automatically reads the patient's electrocardiogram (ECG) and determines if a cardiac arrest has occurred that requires defibrillation, so it can be easily used by both physicians and non-specialized users.

- Automatic volume adjustment
The CU-SP1 automatically adjusts its volume in proportion to the noise emitted in the surrounding environment.

- Pre-connected pads for a defibrillator that is always ready to use
CU-SP1 is equipped with pre-connected pads housed in a special compartment located under the defibrillator. This ensures that the defibrillator is ready for use in the shortest possible time. It is also able to carry out a precise check on the life status of the pads themselves. The front of the defibrillator, in fact, houses a light indicator that changes color both 3 months before the expiration of the pads, and when the plates have expired.

- CPR detection
CPR increases the chances of survival. CU-SP1 detects whether the rescuer is performing CPR or not and prompts the rescuer to perform or continue CPR, respectively.

- Easy communication with CU-EX1 software
By installing the CU-EX1 software on a computer, you can view and analyze the use that has been made of the device. Information such as the ignition time, the patient's heart rhythm, and the shocks applied are all clearly presented.

- Available in 25 languages (to be indicated at the time of order)
Selectable software languages: GB, PT, GR, RO, LT, NL, RU, UA, KR
Manual: GB, PT, GR, RO, LT, RU, TH, KR (For languages listed under "Software Entry" only, the manual is in English)

1 pc. Defibrillator
Mode: Semi-automatic
Waveform: Truncated Exponential Biphasic
Energy:
- Adult: Rated 150J at 50 ohms
- Infant/Child: Rated 50 J at 50 ohms
Charge Control: Automatic Patient Analysis System
Charging Time: <10 seconds from discharge needed warning
Waterproof: IPX5 water jet protection according to IEC60529 (IP55)
IP5X dust protection according to IEC60529
Dimensions - Weight: 260x256x69.5 mm - 2.4 kg

User Interface
User Support: Detailed voice prompts and flashing indicators
CPR Guide: Voice prompts tell you how to perform CPR on adults and children
Controls: On/off button, "i" button, discharge button
Indicators: LCD display (device status, battery status, plate status)
Sensors: Plate expiration date, plate connection status
CPR Monitoring
Automatic volume adjustment

Data recording and transmission
IrDA port: for communication with PC
Internal Memory Capacity: Multiple recordings 5 single events / Max 3 hours
Data Revision PC Program: CU-EX1

Patient analysis system
Patient analysis: Shockable rhythms - Ventricular fibrillation, Tachycardia
Sensitivity/Specifi city Complies with AAMI DF80 guideline

High-capacity disposable battery
Standard Type: DC 12 Volt 4.2 Ah, LiMnO2
Capacity: Minimum 200 discharges or 8 hours of operation

Operating Altitude Range
Altitude 0-4,570 m (0-15,000 ft)Adult plates
Carrying bag
Disposable lithium battery
Paper manual (GB, IT)
Multilingual manual on CD
