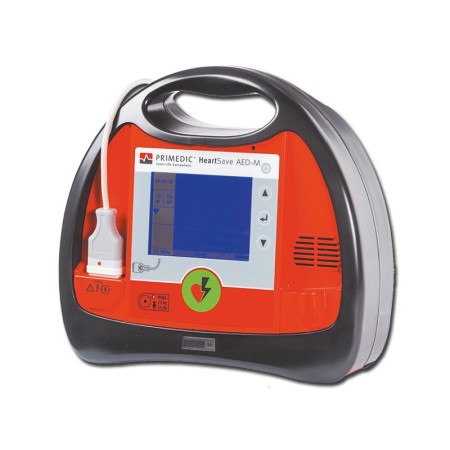

HeartSave AED-M defibrillator with monitor
- with AKUPAK LITE rechargeable battery and charging system
- Languages: English, Italian, Spanish, French

The PRIMEDIC HeartSave product range is quick and easy to use.
Clear voice commands guide rescuers through resuscitation procedures.

- Controlled current defibrillation - CCD
Biphasic CCD technology delivers a peak-free current to the patient's heart through a controlled, personalized defibrillation pulse,
Effective and gentle. Equipped with a staggered defibrillation system, HeartSave is impedance-compensated and delivers a maximum energy of 360J.

- Efficient flow
HeartSave is designed to best support rescuers in resuscitation procedures. Thanks to its advanced operating mode, it helps minimize the peri-shock pause and the period without resuscitation.

- Pediatric mode
Pediatric mode can be selected with a simple button. It doesn't require specific pediatric electrodes and is extremely easy to use.

- Quick
It turns on automatically as soon as it's opened, and heart rhythm analysis begins when the pre-connected electrodes are attached to the patient. All accessories (razor, mask, scissors, and gloves) are included.

- Status display
The screen provides detailed information on the status of the device and batteries (daily and monthly self-test).

- 4 selectable languages.

- Large LCD screen for ECG waveform, heart rate, shockable rhythm count and other relevant information.

1 pc.

Technical Features:
- Defibrillation
Semi-automatic mode
Waves: controlled biphasic
Energy: 50-360J
Charging time: < 12 sec @ 360J
Asynchronous Operating Mode
Pediatric mode

- ECG
Lead: II
Impedance Range: 23-200 Ohm
Heart rate: 30-300 per min

- VF/VT detection
VF/VT detection
Analysis time: 7-12 sec
Asystolic threshold: <0.2mV
Artefact - Pacemaker Detection

- Electrodes
Non-polarized electrodes, 2 m long cable

- LCD monitor
95x72 mm (4.7''/120mm)
320x240 pixels (0.36x0.36 mm)
Battery Status Display
Speed 25 mm/s
Frequency, # of defibrillations, # of VF/VT, total resuscitation time

- Data backup
Removable memory
Recorded voice

- Diet
Akupak Lite with rechargeable battery 100-240 V, 50/60 Hz - 150 shocks at 200 J
- 5 hours of monitoring

- Status display
View defibrillator and battery status

Equipment:
AkuPak Lite Rechargeable Battery with Charging System
Electrodes
User manual
Voice and data recording
