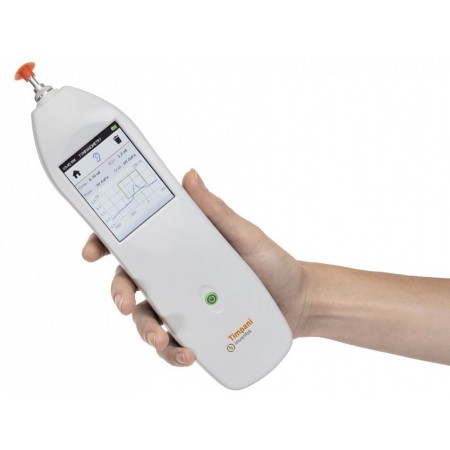

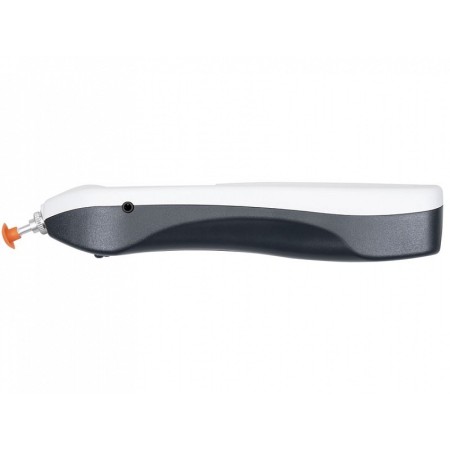

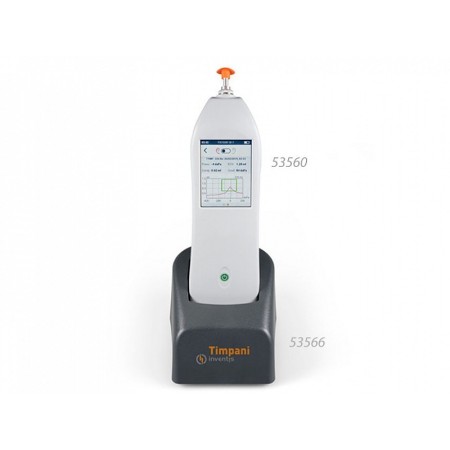

PORTABLE TIMPANI TYMPANOMETER

Lightweight, compact and powerful, Timpani is designed to perform middle-ear screening tests simply, quickly and accurately. The basic version of Timpani enables automatic tympanometry using a probe tone of 226 Hz. Optional licenses enable acoustic reflex testing and pure-tone audiometry. Large color touchscreen.

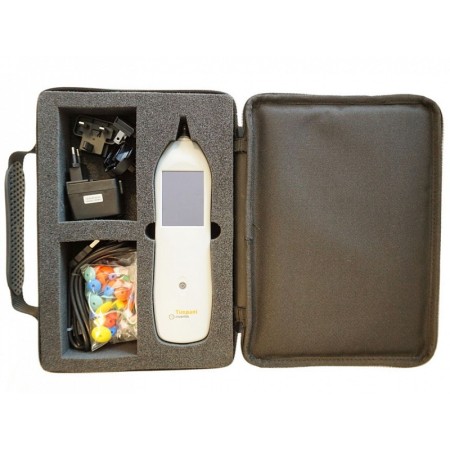

Timpani is supplied with Inventis Maestro software, USB connection cable, medical power supply, assorted ear tips, user manuals in English and Italian, and a carrying case.

LANGUAGES:
- Firmware: English, French, Italian, Spanish, Polish
- Maestro software: English, French, Italian, Russian, Spanish, Polish, Portuguese, Japanese, Chinese, Korean, German, Turkish
- Manual: English and Italian included with the product; Spanish available for download from www.gimaitaly.com

Made in Italy.

1 piece. - Measurement system
- Probe tone: 226 Hz at 85 dB SPL
- Compliance range: 0.2-8.0 ml at 226 Hz, 0.9-16.0 mmho at 1000 Hz
- Pressure range: from +200 to -400 daPa

- Tympanometry
- Test type: automatic tympanometry
- Start: automatic
- Scan rate: 400 daPa/sec

- Acoustic reflex (only with 53563)
- Stimulation: ipsilateral at 226 Hz
- Available tests: automatic threshold, fixed intensity
- Stimuli: 0.5, 1, 2 and 4 kHz (with Reflex Plus license)
- Max. intensity: 100 dB HL (ipsilateral)
- Stimulus duration: 1 sec

- Audiometry (only with 53564)
- Intensity: from -10 to 100 dB HL
- Frequency range: 125-8000 Hz
- Input: pure tone
- Output: AC

- Device specifications
- Memory: 50 patients
- Screen type: graphic, color, touchscreen
- Screen dimensions: 2.8” / 43,2x57,6 mm
- Resolution: 240x320 pixels
- Power supply: rechargeable lithium-ion battery
- Battery life: > 4 hours of continuous use
- PC interface: USB (driverless)
- Software: Inventis Maestro (compatible with Noah)
- Dimensions: 65 x 44 x 240 mm (2,6 x 1,8 x 9,5 inches)
- Weight: 340 g / 12 oz
- Standards:
Impedance: EN 60645-5/ANSI S3.39, Type 2/3
PTA: EN 60645-1/ANSI S3.6, Type 4/4
Safety: EN 60601-1 - EMC: EN 60601-1-2
- Classification: Class IIA (93/42/EEC)
