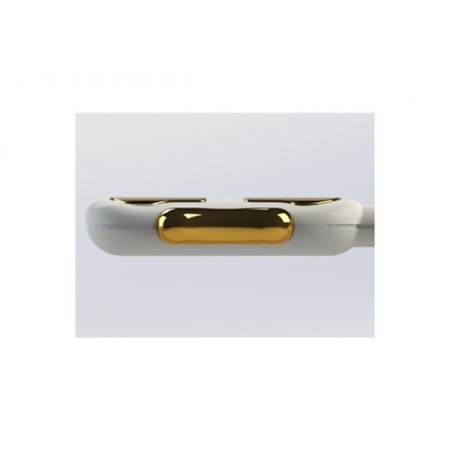

BEAC Perisphera Vaginal Probe - U with 4 Electrodes

PERISPHERAModel " U "

Vaginal probe with 4 electrodes, for perineal re-education, by electrostimulation and EMG biofeedback

It is characterized by a double circuit consisting of two large flat (lower) electrodes, intended for the global stimulation of the perineal plane, and two lateral "saddle" shaped electrodes, intended for the undifferentiated stimulation of the two right and left branches of the pubococcygeus muscle.

For optimal use, it would be advisable to use both circuits, however, the operator who is used to using probes equipped only with side electrodes, and has or wants to use only one stimulation channel, can only connect the equipment to the white connectors.

PERISPHERA perineal probes are made entirely of plastic material

Biocompatible, with gold metallized electrodes.

The electrical connection with the EMG stimulation or biofeedback unit is achieved

by means of two or four wires (length approx. 20 cm) with female banana termination

2mm. The probe can be used with any equipment

of perineal electrostimulation, provided that it is able to deliver pulses

symmetrical bi-phasic (with zero mean value).

Each probe is supplied NOT STERILIZED in a single bag

Sealed, placed in an individual box containing the package leaflet
