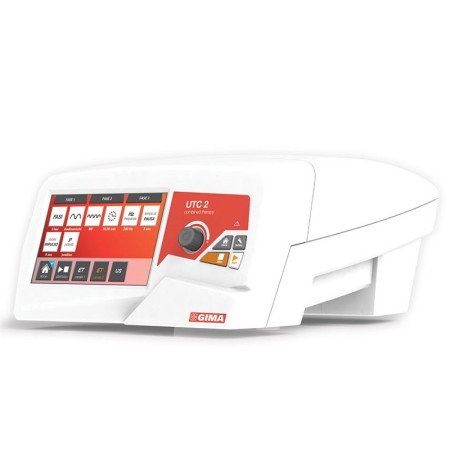

GIMA UTC2 Ultrasound + Electrotherapy is an advanced, programmable unit, ideal for treating various conditions through deep thermotherapy and electrotherapy. This device allows connection of ultrasound transducers with frequencies ranging from 1 to 3 MHz and has two independent electrotherapy channels.

Main features:

• Continuous or modulated ultrasound, with programmable intensity and treatment time.
• Transducer handpieces suitable for use underwater.
• Available electrotherapy currents: diadynamic, faradic, galvanic, pulsed, T.E.N.S. and bipolar.
• High-brightness touchscreen with controls via dial, keypad or touchscreen.
• Wide range of preset protocols and the option to create customized programs.
• Multifrequency handpieces with automatic recognition of the connected accessory.
• Continuous or pulsed emission and sequential treatment programming for each channel.
• Safety control system that switches off the current in the event of accidental electrode disconnection.

Technical specifications:

• Output frequency: 1.0 - 3.0 MHz
• Maximum intensity: 3.0 W/sq cm
• Electrotherapy channels: 2
• Input power: 70 VA
• Maximum continuous current: 30 mA
• Maximum pulsed current: 70 mA
• Maximum output voltage: 100 Vdc
• Power supply: 90-240 Vac / 50-60 Hz

Included accessories:

• Ultrasound handpiece 1-3 MHz Ø 35 mm
• Electrotherapy connection cable 1-2 (28303)
• 4 rubber electrodes 120x80 mm; 4 rubber electrodes 45x60 mm
• 3 elastic Velcro straps: 8x40, 8x60, 8x100 cm
• Power cable 2 m

The software is available in six languages: English, French, Italian, Spanish, German and Portuguese. Made in Italy, it guarantees quality and reliability for healthcare professionals.
