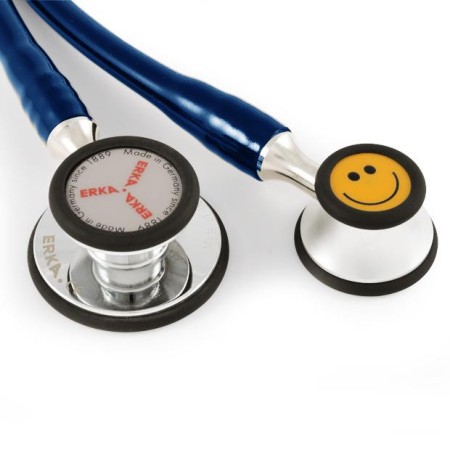

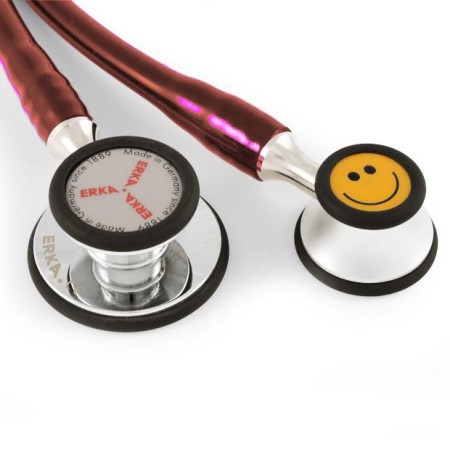

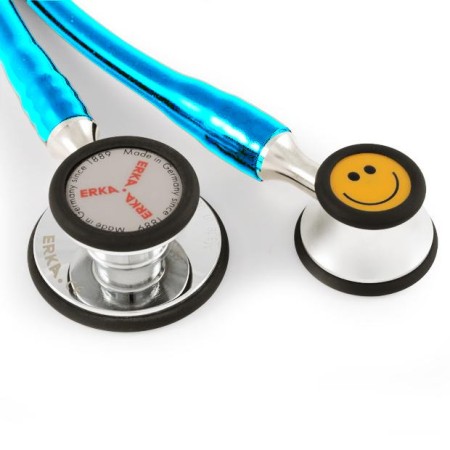

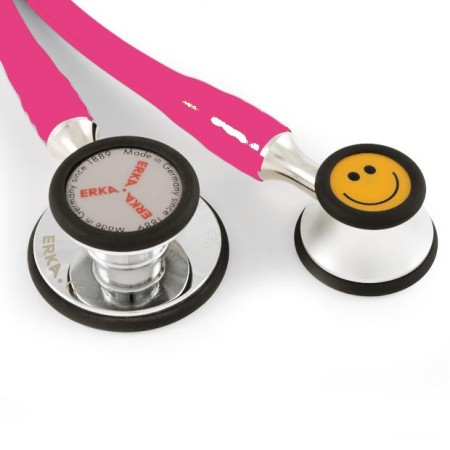

ERKA Finesse ² Pediatric

One for all.

Since every patient is unique, ERKA produces a stethoscope that is useful to the doctor in almost any patient situation.

The switchable double bell equipped with two sides of the diaphragm, makes the entire frequency range perfectly audible.

Since the membranes are installed with the standard convex base stress of ERKA, they ensure the best possible auscultation. A ring as protection against cold is installed on each side to improve patient comfort.

Stethoscope with dual-channel tube and integrated head with two diaphragm sides, switchable, with ring as protection against cold

UMDNS Code: 13-755 Accor Ding Class 1 Medical Device

Overall Length A-C/C-I: 730mm/716mm

Tube Length: 555mm

Earphone Length/Ø:150mm/6mm

Bell dimensions

Adults/Children: 47mm/44mm/30mm/25mm

Child/Infant: 33mm/30mm/21.3mm/22mm

Ø bell / membrane Ø 1/2 Ø membrane / height)

material

Bell: polished brass and chrome-plated Earpiece: Brass, spring yoke chrome-plated: spring steel, chrome-plated

Earbuds: TPE/TPS, soft, color: grey ring as protection against cold protection protection ring/funnel: NBR

Diaphragm: BOPET (Hostaphan RN 250), tube of 0.25 mm thickness contoured: soft, latex-free PVC, resistant against common detergents and disinfectants

Adult/child weight:250g

Child / Child: 208 g

Shipping data

Gross weight, packing and device

Adults / Children (brass): 460 g

Child / Child: 419 g

Box (L x W x H): 377 mm x Packaging 196 mm x 43 mm Volume / Device: 3177 cc

5-year warranty
