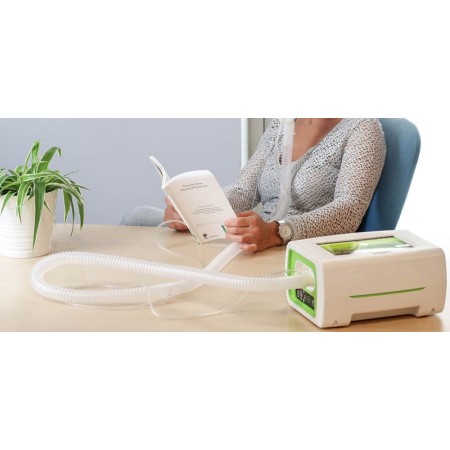

Pressure-volume ventilator VEMO-150
Life-support ventilation

Pressure- and volume-controlled lung ventilator for home use and transport.

The EOVE VEMO 150 ventilator can be used for mechanical ventilation of patients who are dependent or not dependent on the ventilator.
It provides pressure- and volume-controlled ventilation for adult and pediatric patients according to the attending physician’s instructions. It provides continuous or intermittent ventilatory support to adult or pediatric patients weighing at least 3.5 kg (8 lb).
The VEMO 150 device is designed for use in home environments, institutions and hospitals, as well as a portable device for invasive and non-invasive ventilation.

The VEMO 150 ventilator can be configured for ventilation with a single-limb, dual-limb or leak circuit.
It offers a wide range of ventilation modes with volumetric, pressure and mixed control.
The turbine’s high performance and the ability to deliver a Vt of 30 ml enable quiet treatment of pediatric patients weighing at least 3.5 kg. (29 dBA in pediatric configuration - 30 dBA in adult configuration)
Equipped with a 8” color touchscreen display. - Internal memory 8 GB
Ability to set up to 4 different ventilation programs with 15 selectable modes.
High flow and pressure stability, thanks to the turbine's high performance (max flow over 220 l/min; response time < 80 ms).
Internal battery with up to 6 hours of autonomy, designed for connection to one/two external batteries with autonomy
up to 15/24 hours.
Designed for connection to an oxygen source, maximum flow 20 L/min.
Can be connected to: remote alarm; FiO2 reading kit, SaO2 and transcutaneous SENTEC kit.

The VEMO 150 ventilator can be used with the following ventilation modes:
(A)VCV: Volume assist/control ventilation (with expiratory valve)
(A)PCV: Pressure assist/control ventilation (with expiratory valve)
PSV: Pressure support ventilation (with expiratory valve)
MPV: Volume-controlled ventilation with a mask or mouthpiece
MPP: Pressure-controlled ventilation with a mask or mouthpiece
PSV-VT: Volume-targeted pressure support ventilation (with expiratory valve)
V-SIMV: Synchronized intermittent mandatory volume ventilation (with expiratory valve)
P-SIMV: Synchronized intermittent mandatory pressure ventilation (with expiratory valve)
CPAP: Continuous positive airway pressure (with leak)
ST: Timed and synchronized ventilation (with leak)
PAC: Pressure assist/control ventilation (with leak)
VTS: Synchronized ventilation with volume target (with leak)
C-FLOW: Continuous flow

Specifications of adjustable parameters:
Pressure support (PS) - from 5 to 59 mbar
IPAP - from 6 to 50 mbar
PEEP - from 0 (off) to 25 mbar
EPAP - from 4 to 25 mbar
Tidal volume - From 30 to 2500 ml
Respiratory rate - From 5 to 80 bpm
Inspiratory trigger: (flow-based) Adjustable from 1 to 5 or AUTO or OFF
Expiratory trigger: Adjustable from 10% to 90% or AUTO or via Ti max
Inspiratory time - from 0.3 to 2.5 sec
Minimum inspiratory time - from 0.3 to 2.5 sec or AUTO
Maximum inspiratory time - from 0.3 to 2.5 sec or AUTO
Flow - square or decelerating waveform
Rise time - from 1 to 5 (50-500 msec)
Pressure in CPAP mode - from 4 to 20 mbar
Tidal volume in MPV/MPP mode - from 100 to 2500 ml
Respiratory rate in MPV/MPP mode - from 5 to 80 bpm or OFF
Bias flow in MPV/MPP mode - from 1 to 20 L/min
Flow in C-FLOW mode - from 2 to 60 L/min
Specifications of monitored parameters:
(rounded readings, available units of measurement: cmH2O, mbar, hPa)
Peak inspiratory pressure (PIP) - From 0 to 99 mbar
Positive end-expiratory pressure (PEEP) - From 0 to 60 mbar
Inspiratory tidal volume (VTI) - From 0 to 4000 ml
Expiratory tidal volume (VTE) - from 20 to 4000 ml
Total respiratory rate (Rtot) - From zero to 99 bpm
I/E ratio (I E) - From 9.9:1 to 1:9.9
I/T ratio (I/T) - From 0 to 100%
Inspiratory trigger: (flow-based) with adjustable threshold or AUTO
Expiratory trigger: (flow-based) with adjustable threshold or AUTO
Inspiratory time (I Time) - From 0 to 9.9 s
Expiratory time (E Time) - From 0 to 59.9 s
Inspiratory minute volume (Min VI) - From 0 to 99,9 L
FiO2 - From 21 to 100%
Leak compensation - From 0 to 200 L/min

VEMO 150 ventilator (docking station with display and ventilation module), power supply and cable, standard carrying bag, oxygen connector, dual-port adapter (expiratory valve and flow sensor).
