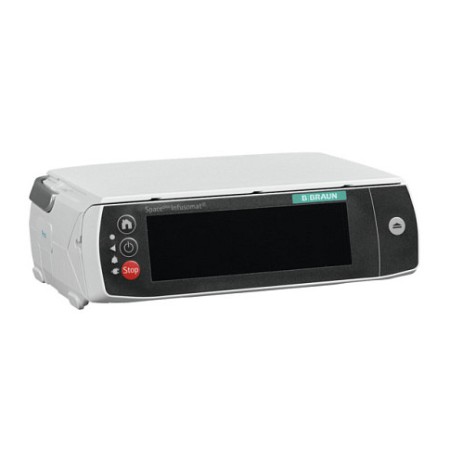

SPACE PLUS INFUSOMAT
A transportable peristaltic infusion pump for the administration of small volumes of medications, infusion solutions, and nutritional solutions. The Spaceplus Infusomat® pump meets all safety standards for electronic medical devices according to IEC/EN 60601-1 and IEC/EN 60601-2-24. It can be used individually or in combination with the B. Braun Space system, designed to house Space family pumps in an infusion station that provides power and data transmission, if applicable, of infusion therapy information.
Advantages

- Intuitive and standardized user interface for both B. Braun Space pumps
- Automatic calculation of infusion rate based on volume and duration
- Automatic calculation of the administration rate based on the drug concentration and the desired dosage
- Battery life approx. 11 hours with WiFi active and 13 hours with WiFi deactivated

Drug Archive

- Up to 10,000 medications, including therapy data, can be stored in 30 categories
- Specific infusion limits and standard infusion values can be described for each drug

Safety features

- Safety device integrated into the pump and the drip tray for maximum protection against free flow when opening the pump door, or when removing the drip tray
- Automatic bolus reduction following an occlusion alarm. The additional pressure sensor checks for any upstream occlusions (e.g., closed roller clamp).
- Data Lock (block parameters and/or disposable devices) on 3 security levels
- Alarm with error messages on the display

Risk Class: IIb

Please note: The package does not include the power supply.

Punch - Dual-way, liquid and air
- Equipped with spaced air and liquid holes to minimize air bubble retention
in the liquid path
- Free from roughness to avoid fragments detaching from the membrane
elastomeric of bottles/bags/vials during drilling
- Calibrated to yield 20 drops of distilled water per milliliter
Room of
drip
- Highly transparent
- Wide
- Easily compressible in its lower part to recall the liquid
- Equipped with a 15 mm particle retention filter at the base
Central ring - To facilitate piercing the bottle
- To anchor any drip sensor belonging to the pumps
volumetric Infusomat fmS and Infusomat Space
Socket valve
of air
- For pressure compensation during infusion from plastic bottle
rigid or glass
- Equipped with an antibacterial, hydrophobic filter and protected by an "open-close" cap
Pipeline
(referring to Set
Infusomat
Standard)
- Inner diameter: 3.0 mm
- External diameter: 4.1 mm
- Bolus volume: 3.0 ml/m at 40°C and 2 bar
- Total length 250 cm, pump-patient length 145 cm
- High transparency
Roller Clamp by
precision
- Ergonomic
- Equipped with a non-slip knurled wheel
- Equipped with a hook for positioning the terminal part of the dripper during
filling and standby period before connecting to the patient
- Equipped with a punch holder for safe disposal
Segment for
Pump
- Tract that adheres to the peristalsis of the volumetric pump
- Internal diameter: 4.0 mm
- Outer diameter: 6.0 mm
- High resistance
- Non-deformable
