WristOx 2 Wrist Pulse Oximeter - Model 3150 with USB, Manufactured without Software

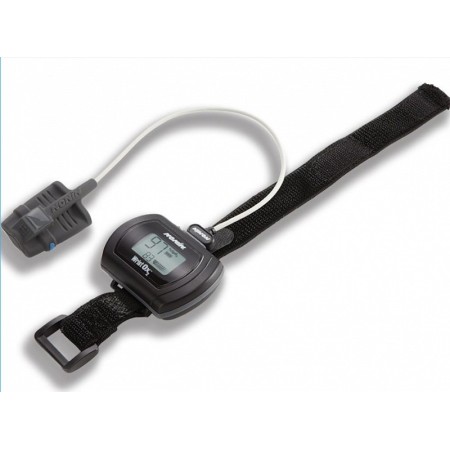

WristOx 2 Wrist Pulse Oximeter - Model 3150 with USB

Featuring Nonin PureSAT SpO2 technology, the WristOx 2 3150 USB offers fast, accurate detection of oxygen saturation and pulse rate under challenging conditions, including low perfusion and movement.
The WristOx 2 3150 USB is compatible with a wide range of Nonin PureLight sensors and provides continuous and reliable SpO 2 monitoring and data logging.
Applications include nightly oximetry studies at home, in hospitals, and in sleep labs.

Pulmonary rehabilitation
Advanced features such as 6 Minute Walk Test (6MWT) or nighttime oximetry reports available

Home Use
For sleep apnea screening or physician-directed oxygen qualification screening

Versatility and ease of use
Ideal for applications where a small portable oximetry is needed and Bluetooth connectivity is not essential

Compact design
The small size acts like clockwork, with a large screen and improved sensor connector design

Improved memory
1,080 hours of non-volatile memory at a four-second sampling rate with additional high-resolution variable sampling options of one or two seconds

PureSAT Technology
Pulse averaging algorithm that is able to adapt to the patient's condition for precision accuracy.

Data verification
MVI (Memory Volume Indicator) mode provides a graphical display in hours and minutes, verifying that enough data has been recorded during the oxygen qualification test

Secure Data Transfer
Data can be securely transferred to nVISION via USB connection

Unique sensors
WristOx 2 sensors are designed exclusively for use with WristOx 2 3150 oximeters

Long battery life
Runs for 48 hours on two AAA batteries

Proven durability
Reliable design and construction, backed by an industry-leading 3-year warranty

SpO 2 Data Management Software ( Alternative Price )
nVISION software offers easy visualization, professional analysis, report generation, and patient file storage for pulse rate, blood oxygen saturation (SpO2), CO2 (EtCO2), and respiratory rate data. It is a cost-effective solution for basic basic oximetry screening, capnography, and Six Minute Walk Test (6MWT) testing in almost any screening situation where an accurate reading of blood oxygen saturation and pulse rate is needed.

Oxygen saturation display range: 0% to 100% SpO2
Pulse rate display Range: 18 to 321 beats per minute (BPM)
Views:
Numerical:
3-digit LCD pulse : Pulse strength bar graph

Accuracy: Sensors - Accuracy data stated for compatible sensors can be found in Nonin's Sensor Accuracy document.
Wavelength and output power measurement**:
Red: 660 nanometers @ 0.8 mW average maximum
Infrared : 910 nanometers @ 1.2 mW average maximum

** This information is especially useful for physicians performing photodynamic therapy.

Temperature:
Operating : -5°C to 40°C (23°F to 104°F)
Storage/Transportation: -40°C to 70°C (40°F to 158°F)
Time (from memory) for monitors to be ready for intended use: 10 minutes for heating from -40°C to -5°C
10 minutes for cooling from 70°C to 40°C
The temperature of the device will not exceed 41°C as measured during a controlled environmental test.

Humidity:
Operating : 10% to 95% non-condensing
Storage / Transport : 10% to 95% non-condensing

Operating altitude: Up to 4,000 meters (13,123 feet)
Operating hyperbaric pressure: up to 4 atmospheres
Power Requirements: Two AAA batteries (1.5V)

Battery life (minimum expected):
NOTE: Based on testing new and fully charged batteries. See the
footnotes for used trademarks. Refer to the
battery manufacturers' operator's manuals for operating instructions. AAA alkaline a ) AAA rechargeable (700 mAh) b AAA rechargeable (1050 mAh) c
Memory: MVI display mode off:
MVI Display Mode on: 9 months
25 days Not specified Not specified
Operation without Bluetooth connection, continuous use: 53 hours 36 hours 52 hours
Operation with Bluetooth connection, continuous use: 44 hours 24 hours 31 hours
Dimensions (without sensor or strap) : 51 mm x 73 mm x 19 mm (H x W x D)
(2.0 inches x 2.9 inches x 0.75 inches)

Weight (with batteries and strap) : 70.0 g (2.5 oz)
Memory:
Type : Non-volatile
Capacity:
Up to 1080 hours (4 seconds of data storage)
Up to 540 hours (2 seconds of data storage)
Up to 270 hours (1 sec. data storage rate)

Classification for ANSI/AAMI ES60601-1 and CAN/CSA-C22.2 No. 60601-1:
Protection type : Internal power supply (battery powered)
Degree of protection : Type BF-Applied part
Operation mode : Continuous protection rating
Input Protection : IP33

This product complies with ISO 10993-1, Biological Evaluation of Medical Devices - Part 1: Evaluation
and tests.

a Batteries used: Harding Alkaline AAA
b. Batteries used: Energizer (MR03) Ni-MH rechargeable batteries
700 mAh 1.2 V dc. Batteries used: Ansmann NiMH 1050 nMh rechargeable batteries (HR03) 1.2 VDC

View Product

Standard Accessories include:
- 2 AAA alkaline batteries
- 1 Wrist strap
- PureLight 8000SM-WO2 Sensor Tg. M
- Operator's Manual on CD-ROM.
