The GIMA Sleep Apnea Monitor is a professional device designed for non-invasive monitoring of respiratory and cardiovascular parameters during sleep. Ideal for patients with obstructive sleep apnea syndrome (OSAS) , chronic obstructive pulmonary disease , asthma , vascular diseases , or for individuals over 60 years of age, it is suitable for both home and hospital use.

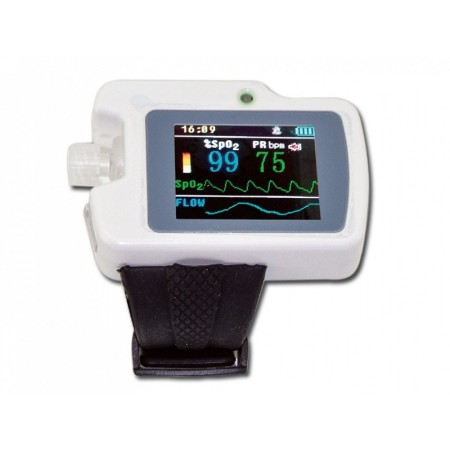

The compact and lightweight device is a multifunctional wrist model that allows you to obtain complete physiological data through:

• oxygen saturation measurement (SpO2)
• heart rate
• heart sound
• heart rate bar graph
• nasal airflow monitoring
• heart rate trend indication

It includes automatic alarm functions in case of low battery, a finger not connected, or exceeding preset limits. It features a real-time clock and multi-care recorder for continuous data collection for up to 20 hours.

The device is supported by PC analysis software that allows for detailed evaluation of the recorded data.

Technical specifications:

• Nasal airflow measuring range: 0–40 rpm ±2 rpm
• SpO2 measuring range: 0–100% ±2% (70–100%), resolution 1%
• Heart rate measurement range: 30–250 bpm ±2 bpm or ±2% (whichever is greater)
• Resistance to external light: difference < ±1% between artificial light, natural light and darkness
• Display: 1.8" color LCD
• Consumption: ≤100 mA
• Power supply: 3.7V rechargeable lithium battery
• Battery life: over 20 hours of continuous operation
• Safety type: internal power supply, type BF applied part
• Dimensions: 69 x 50 x 17.3 mm
• Weight: 100g (battery included)

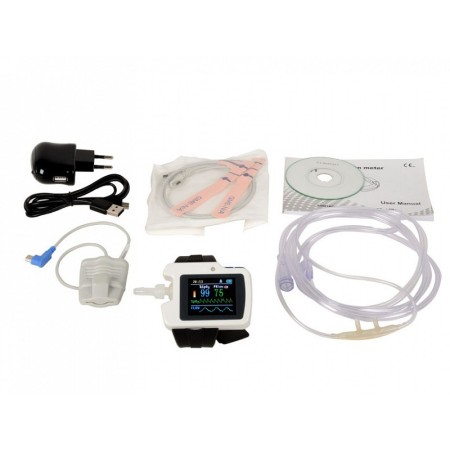

Accessories included:

• Disposable SpO2 probe for adults and neonates
• Reusable SpO2 probe for adults
• Nasal cannula for oxygen
• Adapter
• USB cable
• Analysis software
• User manual in English, French, Italian and Spanish

The GIMA Sleep Apnea Monitor represents a reliable and complete solution for the diagnosis and monitoring of sleep apnea and related respiratory conditions, helping to improve the patient's quality of life through precise and continuous monitoring.
