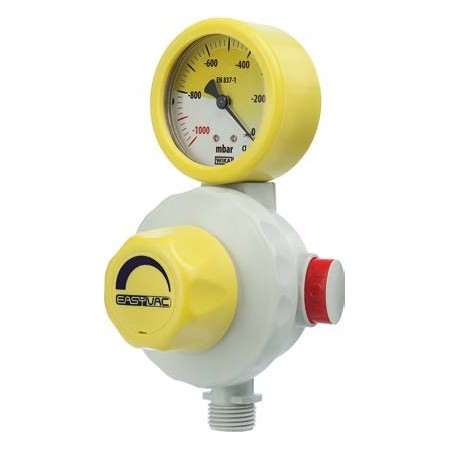

EASYVAC 1000 VACUUM REGULATORS
E = UNI coupling; U=1/2"M

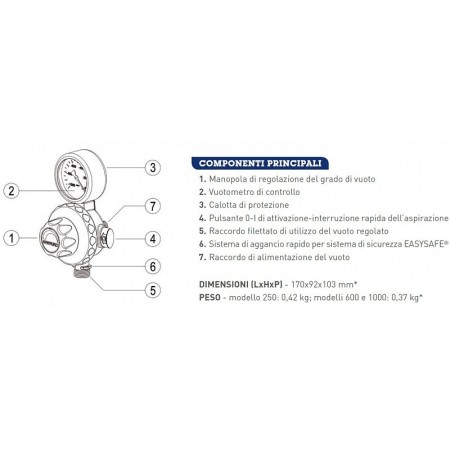

The vacuum regulators of the EASYVAC series are suitable for all vacuum applications.
continuous medical aspiration in the hospital environment. The device consists of
essentially a technopolymer body in which a
quick push button switch I/0, a knob for adjusting the value of
suction, and a control vacuum gauge with variable full scale in operation
of the model (-250, -600, and -1000 mbar). A silicone protective shell
avoids damage to the vacuum gauge caused by possible impacts during the
transportation or use.
The vacuum regulators of the EASYVAC series are also provided, through
a threaded connection, for direct or indirect connection to normal
collection containers for vacuumed liquids or, through a specific connection,
for direct connection to the EASYSAFE safety enclosure
(see STI AGM.011) using the special integrated quick coupling. The extreme
rationality and simplicity, combined with sophisticated technical implementation,
allows both operators and patients to appreciate the safety and
functionality of this device.
In addition to the standard configurations, EASYVAC Controllers are available on request
in customized assemblies, according to each specific need
of use.
Maximum power supply depression: -950 kPa.
Suction Degree Adjustment System: diaphragm.
All components are free of P.V.C. and natural latex.

MAIN STANDARDS AND REFERENCE LAWS
UNI EN ISO 10079-3 "Aspirators for medical use -

Vacuum cleaners driven by a vacuum or pressure source"
DIRECTIVE 93/42 EEC and s.m.i "Medical devices"
MEDICAL DEVICE REFERENCES
MANUFACTURER: Flow Meter S.p.A.
CE MARKING: Class IIa
MFF REF: 0000100XX
RDM: 61166
NDT: A0699
