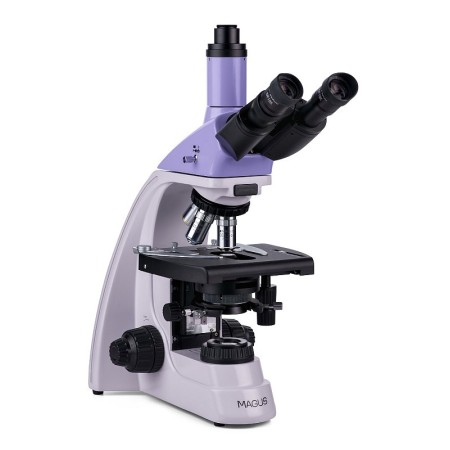

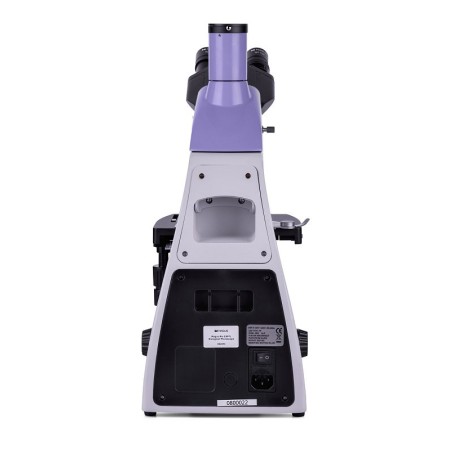

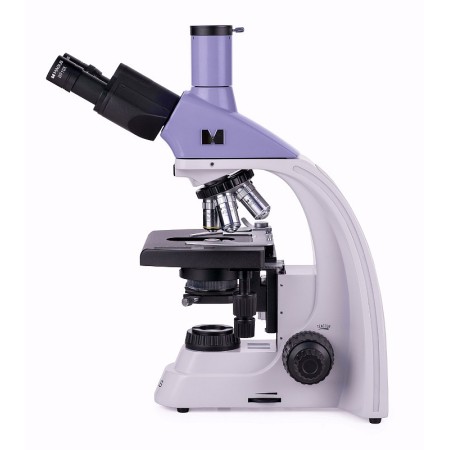

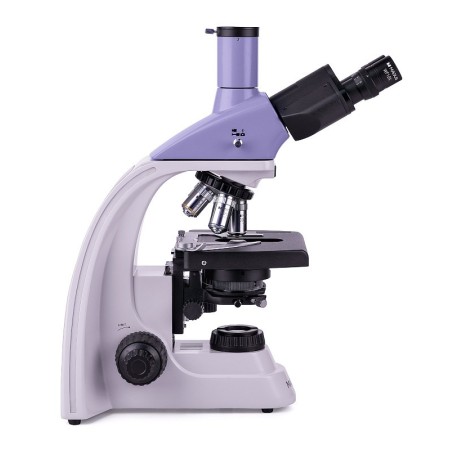

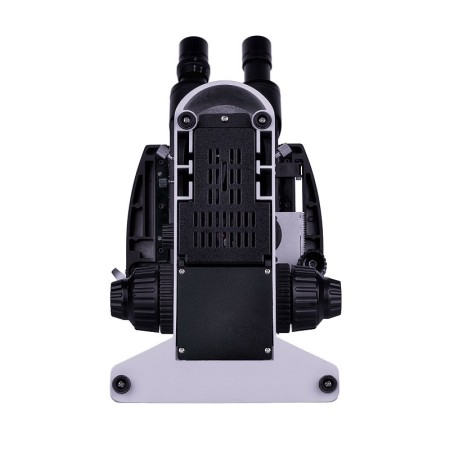

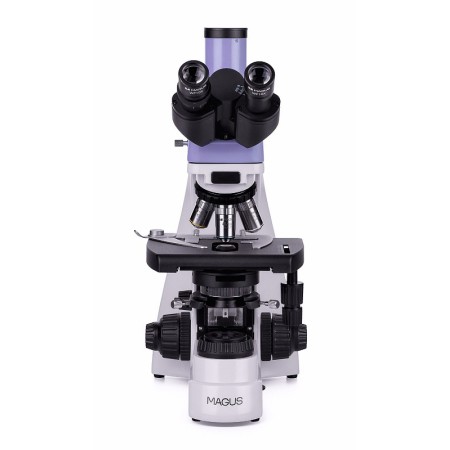

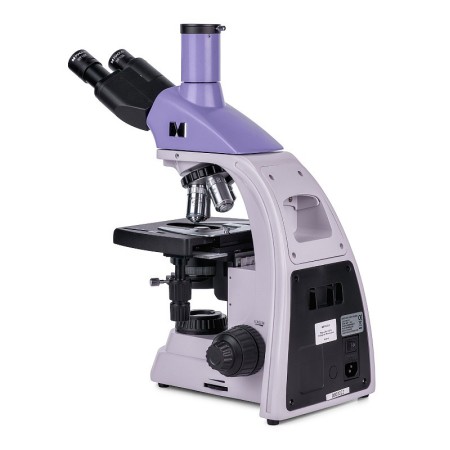

Biological microscope MAGUS Bio 230TL

Price: €1,021.38
Tax included

The MAGUS Bio 230TL biological microscope is an essential tool for a healthcare laboratory, diagnostic center, or research institute. This microscope is equipped with a trinocular head and light source for observations in transmitted light (LED) and is suitable for the analysis of semi-transparent preparations and naturally transparent samples. In its basic configuration, observations are made using the brightfield observation technique. With the use of additional accessories, it will be poss...

Availability Shipping in 3/7 days.
Noleggialo a €20.73 + IVA / mese per 60 mesi con Maggiori informazioni ›
Code SGLV82895 Brand MAGUS EAN 5905555017976


BrandMAGUS
Warranty5 years
EAN5905555017976
Package size (L × W × H)43x27x63 cm
Shipping weight10.5 kg
=== Delimiter ===Microscope specifications
Typebiological, light/optical

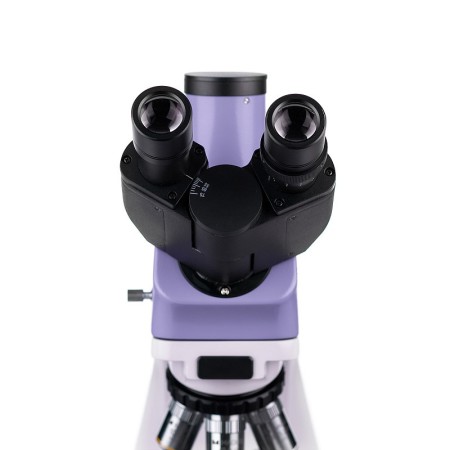

Microscope head typetrinocular
HeadGemel head (Siedentopf type, rotates through 360°)
Head inclination angle30°
Magnification, x40 — 1000
Magnification rangefrom 800x to 1280x
Magnification, x (optional)40–1500/1600/2000
Eyepiece tube diameter, mm23.2

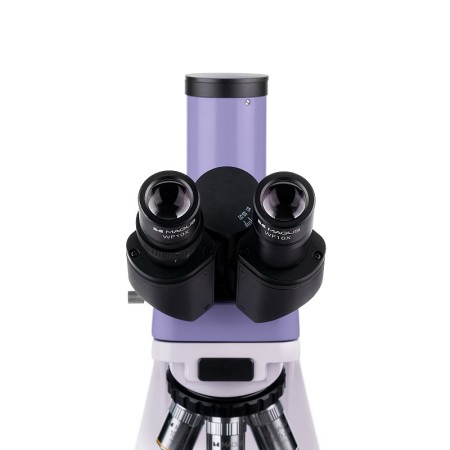

Eyepieces10х/18 mm, eye relief: 10 mm (*optional: 10x/20 mm with scale, 15x/11 mm, 16x/11 mm; 20x/11 mm)
Objectivesinfinity-corrected achromatic: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance 45 mm (*optional: 20x/0.40; 60xs/0.80)
Nosepiecefor 5 objectives
Working distance, mm18.89 (4x); 5.95 (10x); 0.775 (40xs); 0.36 (100xs); 2.61/8.80 (20x); 0.46 (60хs)
Interpupillary distance, mm48 — 75
Stage, mm180x150
Stage travel range, mm75/50
Stage featurestwo-axis mechanical stage drive, without a positioning rack
Eyepiece diopter adjustment, diopters±5 (on the left eyepiece tube)

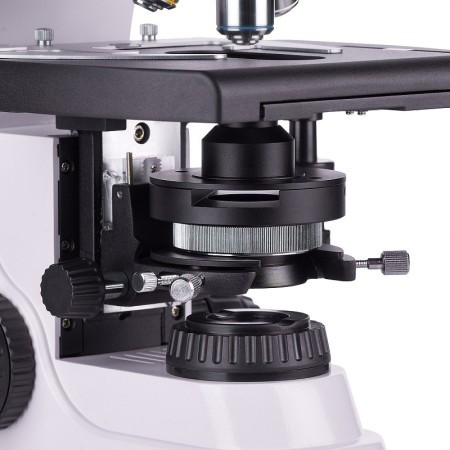

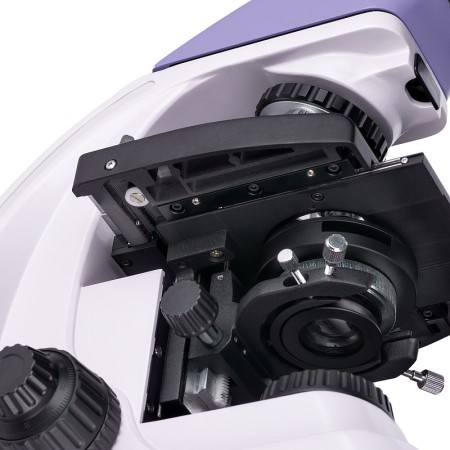

CondenserAbbe condenser, N.A. 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark-field slider and phase-contrast slider, dovetail mount
Diaphragmadjustable aperture diaphragm, field diaphragm with adjustable iris

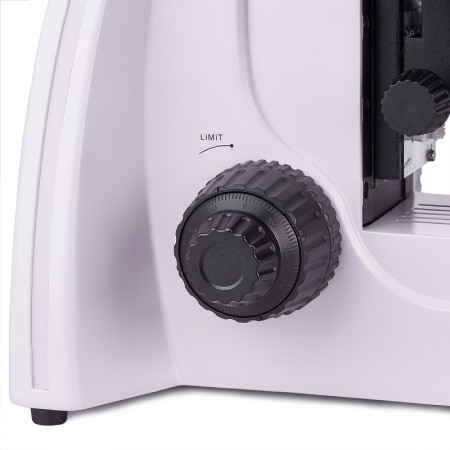

Focusingcoaxial, coarse focusing (21 mm, 39.8 mm/revolution, with a locking knob and a micrometer screw tension adjustment knob) and fine focusing (micrometer screw of 0.002 mm)
IlluminationLED
Brightness adjustmentyes
Power supply220±22 V, 50 Hz, AC mains
Light source type3 W LED
Optical filtersyes
Operating temperature range, °C5 — 35
Option to connect additional equipmentphase-contrast devices (condenser and objectives), dark-field condenser (dry or oil immersion), polarization instruments (polarizer and analyzer)
User levelprofessionals, experienced users
Assembly and installation difficulty levelcomplicated
Applicationlaboratory/medical
Illumination positionbottom
Research methodbright field

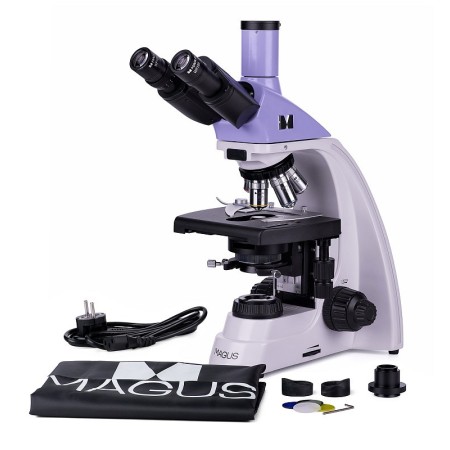

Set with case/cover/bagdust cover
Weight, kg8
Dimensions, mm200x436x400
