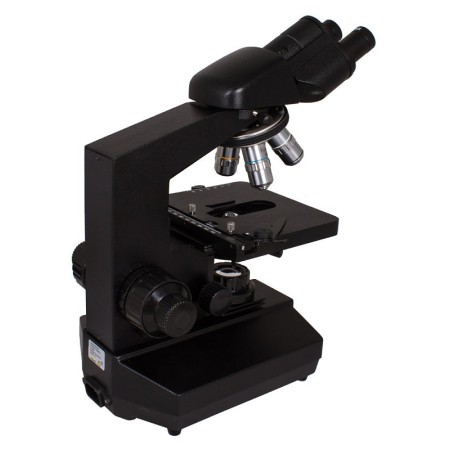

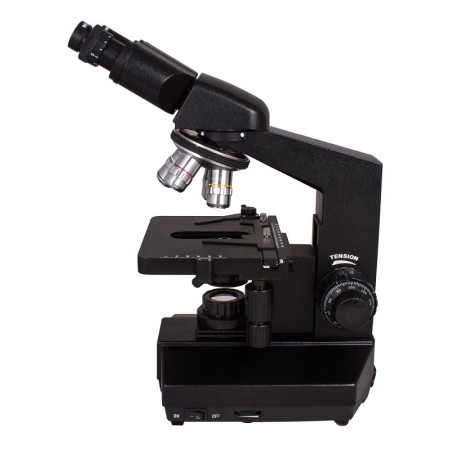

Levenhuk 850B is a biological binocular microscope equipped with planachromatic optics for brightfield observations in transmitted light. It is used in medical centers of different types for urological, dermatological, biological, biochemical, anatomical-pathological, cytological, and general clinical laboratory research.

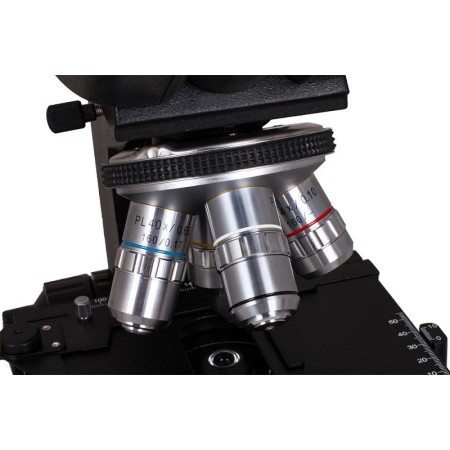

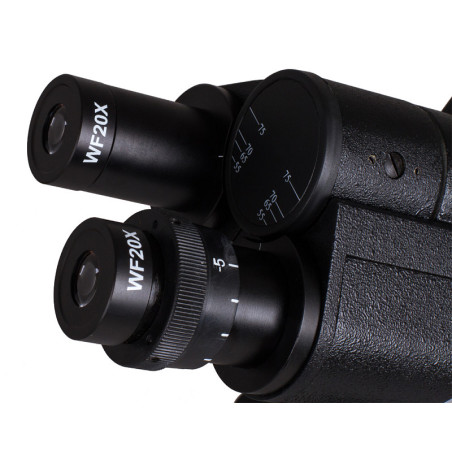

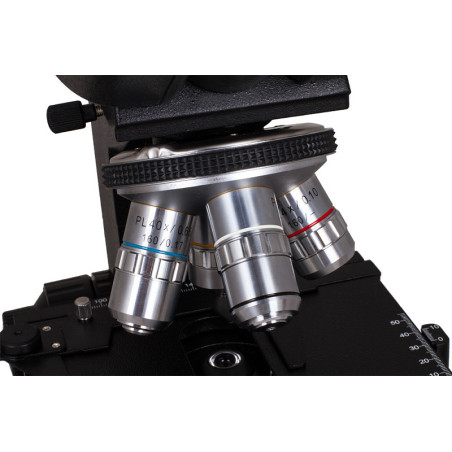

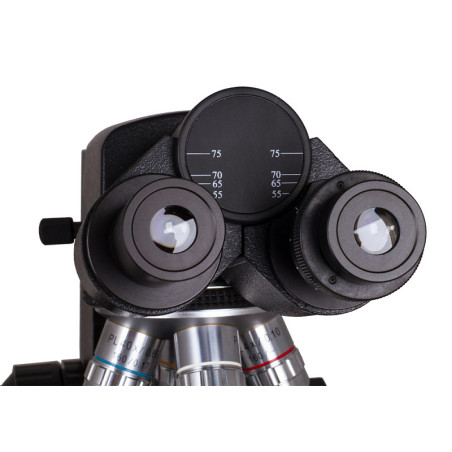

The microscope is equipped with a 360º rotatable binocular head with a tilt angle of 30º and a 4-objective nosepiece. The nosepiece with its objectives is oriented towards the inside of the instrument: the user can see which objective is inserted in the optical path and the space above the stage remains free. The interpupillary distance is adjustable within a wide range. The set includes 10x eyepieces with a 22 mm field of view, which allows you to view a large area of the sample.

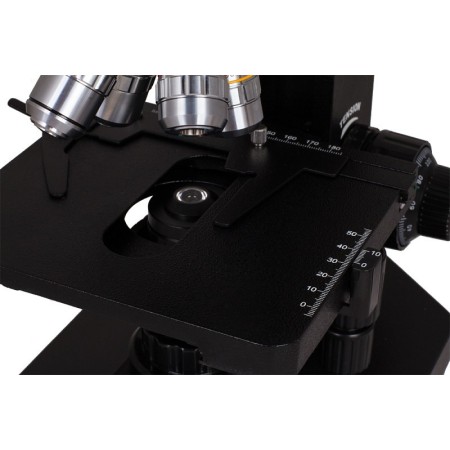

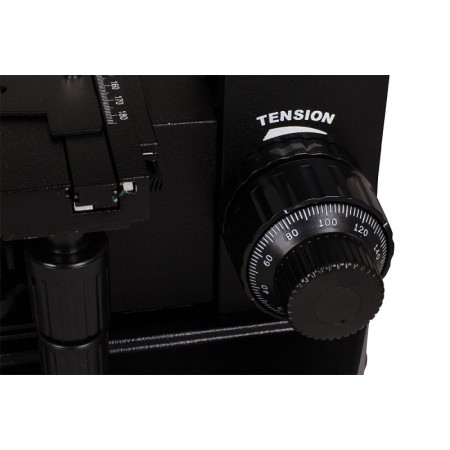

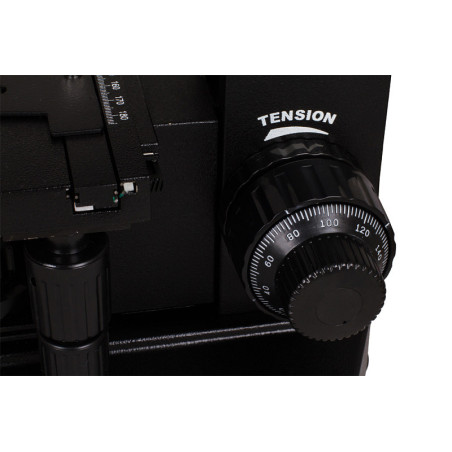

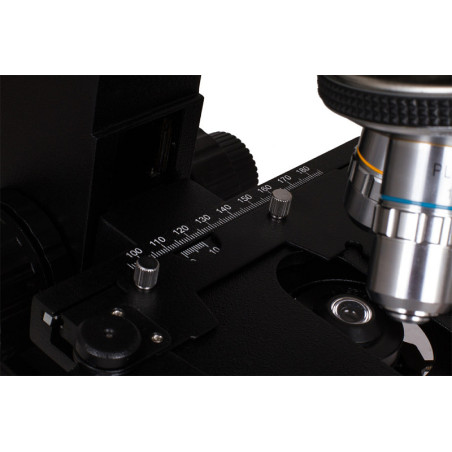

The focus of the microscope is adjustable by means of the coarse and fine focus knobs. The focus handles move the stage vertically and horizontally along two axes perpendicular to each other. The stage does not have a positioning rack. The stage knob positioned at the bottom enhances the user experience. The sample holder is designed to accommodate two samples. With the focus adjustment and stage movement mechanism taking place smoothly, movements are quick and easy.

Using an LED light source increases the resolution of the microscope. The LED is mounted on the base, its brightness can be adjusted and lasts a long time before a replacement is required. The field and aperture diaphragms enable the Köhler method of illumination. The illuminator operates on AC power (220 V power cable included).

Key features:

• Binocular head, digital camera mounted on one of the eyepiece tubes
• Magnification range: 40–1000x, planachromatic optics
• Abbe condenser, field and aperture diaphragms, Köhler illumination
• Stage without positioning rack and two sample holders
• Coarse and fine coaxial focus
• LED lighting (transmitted light) with dimming
• Retractable header for easy LED replacement
• AC Power

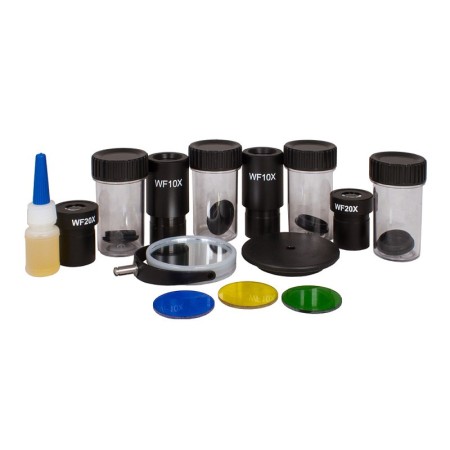

The package contains:

• Microscope base, nosepiece, condenser, stage, integrated transmitted light illuminator and power supply
• Binocular head
• Planachromatic objectives: 4x, 10x, 40xs, 100xs (oil)
• Eyepiece WF10x/22 mm (2 pcs.)
• Blue filter
• Vial of immersion oil
• AC Adapter
• Dust cover
• User Manual & Warranty Card

Caution: For information regarding the correct mains voltage, refer to the specification table. Never attempt to connect a 110 V device to a 220 V power outlet, or vice versa, without using a voltage converter. Remember that the mains voltage in the United States and Canada is 110 V and 220–240 V in most European countries.

Some of the things that can be observed under the microscope:

The photo shows slides of ready-to-use sample kits from Levenhuk.
Levenhuk 850B microscope is compatible with Levenhuk Digital Cameras (not included). Levenhuk cameras are installed on the eyepiece tube, instead of an eyepiece.
