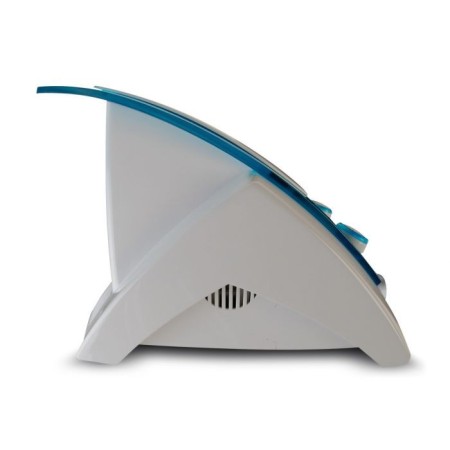

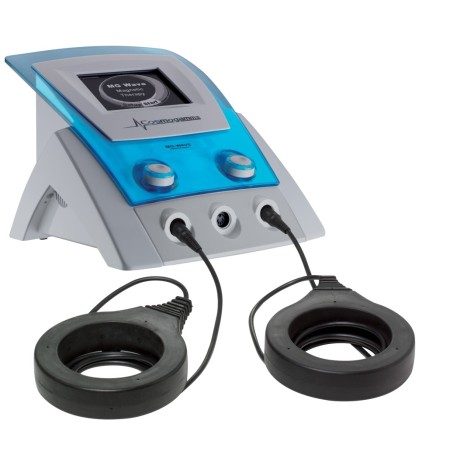

Professional Medical Device for Magnetotherapy MG WAVE (EVO)

MG WAVE is a portable low frequency therapy unit.

Pulsating Electromagnetic Fields (ELF-PEMF)

PATIENT ARCHIVE allows you to store:
- patient data
- pathology
- description of the treatment
- Personalization of treatment
- Evaluation of pain level at the beginning and end of treatment.

The patient database allows immediate access to personalized treatment, allowing it to be repeated easily and quickly.

PROGRAMS AND SEQUENCES
Large memory for storing new programs and combined program sequences. This allows you to create personalized treatments tailored to the patient's specific needs.

High output power
Simple parameter setting
Preset programs for the most common pathologies
Easy coil positioning
Flat or circular coils for cervical or lumbar treatments
Large graphic display showing all output parameters
Patient database
Ability to store modified programs and protocol sequences

Number of exits: 2
Field pilot signal: rectangular
Pulse duration: up to 5 ms
Frequency: 1 ÷ 750 Hz

Maximum Induction B:
- 160 Gauss (Peack) for Ø 15 cm and Ø 7.5 cm coils
- 65 Gauss (Peack) for Ø 30 cm coils
- 50 Gauss (Peack) for Ø 60 cm coils

Timer: 0÷240 min., acoustic signal at the end of treatment and automatic interruption of operation

Power supply: 115 – 230 Vac, 50 – 60 Hz

Input: 55 VA

Dimensions:
– Central unit: 27 x 32.8 x 23 cm (WxDxH)
– Flat coils: Ø 15 cm each.

Weight:
– Central unit: 3.8 kg
– Flat coils: 750 gr. per head

Insulation class: Class I – type BF

1 pc. – Red cable for 15 cm coils (A01.00077)
1 pc. – Black Cable for 15 cm Coils (A01.00078)
1 pc. – Power cord (AC)
2 pieces – 100cm elastic straps (F7)
1 pc. – Magnet (MGN)
1 pc. – Coil Ø 15cm (A01.00083)
