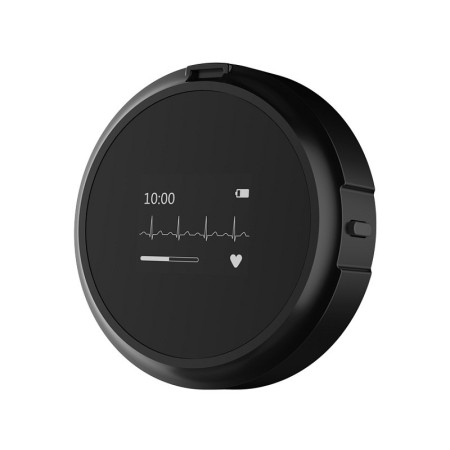

The M12 Holter Monitoring System is a digital, wireless, multi-parameter ambulatory ECG device designed for continuous heart monitoring. Lightweight and compact, it is ideal for routine checkups or self-monitoring, both in clinical and home settings, under the supervision of a healthcare professional. It allows the visualization, recording, storage and transfer of ECG data, which must be analyzed by qualified medical personnel.

Technical features:

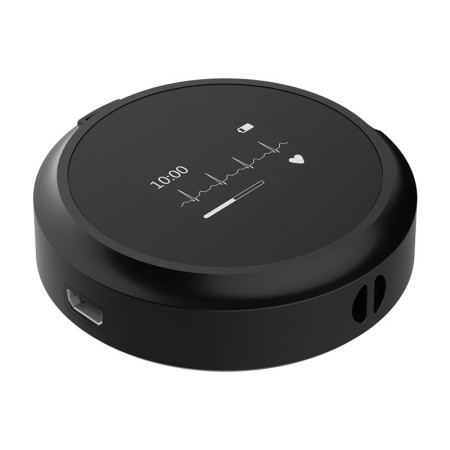

- Compact design: Ø 48 mm x 15.2 mm, weight less than 50 g
- Real-time high-definition ECG trace display
- Excellent input impedance to reduce trace distortion

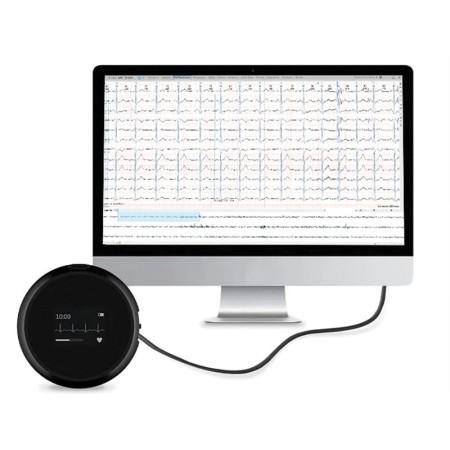

- Data transmission to PC via USB
- Built-in battery for continuous monitoring for up to 72 hours
- 24-bit A/D conversion accuracy

Advanced analytics capabilities:
- Extensive statistical analysis
- Editing templates
- Analysis of flutter and atrial fibrillation
- HRV analysis
- Heart rate fluctuation analysis
- Analysis of the P wave overlap
- ST segment analysis

Application scenarios:
- Diagnostics and prevention
- Post-cardiac surgery rehabilitation
- Physical examination
- Assistance in drug therapy
- Screening for risks of cerebral ischemia

Equipment:

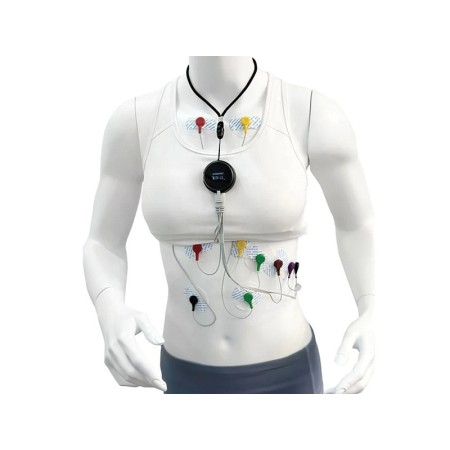

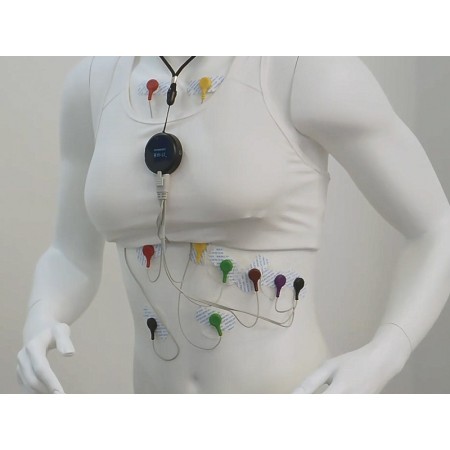

- ECG lead cable (10 button electrodes)
- 20 disposable electrodes for adults
- Mini HDMI cable
- Magnetic charging cable
- Adjustable strap
- AI ECG Tracking Software (54315)
- Key
- Quick Operation Guide
- Manual in GB, FR, IT, ES, PT, DE, UA, RU (downloadable online)

Specifications:
- Power supply: rechargeable lithium-polymer battery, 3.8VDC, 400mAh
- Charging time: 2 hours
- Battery life: 72 hours on a full charge
- Voltage: 4.5~5.5V DC

ECG:
- Leads: 3/5/12 leads
- Input resistance: =50MO, 10 Hz
- Input signal range: 10mV (p-v)
- CMRR: =120 dB
- Band Width: 0.05~40Hz

Heart rate:
- Measurement range: 30~250 bpm, ± 2%
- Resolution: 1 bpm

The software is to be purchased separately, code ECG54315.
