Obsolete product since September 2024 no longer in production.

Replaced by :

DeVilbiss 7325P-I Quiet Portable Vacuum Cleaner with Battery
Item Code: AS7325P-I

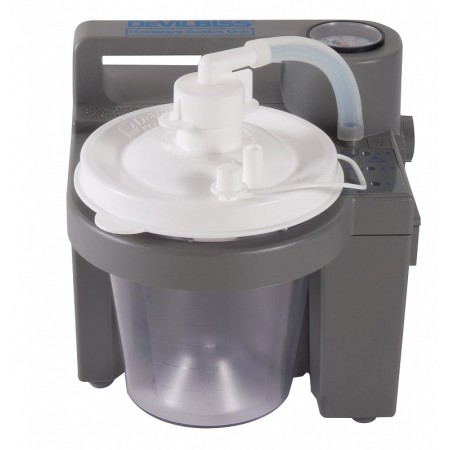

DeVilbiss Vacu-Aide battery-powered surgical aspirator, the most popular portable surgical aspirator in the world.

The battery of the DeVilbiss Vacu-Aide has an average autonomy of about 60 minutes. during which the appliance achieves a suction flow of 27 LPM.

The battery charge level can be constantly checked through three LEDs of different colors.

The DeVilbiss Vacu-Aide can be powered by the mains or cigarette lighter socket.

NDT : Z120105
BD/RDM : 465763

Dimensions H x W x D (cm) 22.9 x 17.8 x 20.3

Weight (kg) 2.9

Electrical Requirements 100-240 V AC 50/60 Hz .75 A max; 12 V DC, 33 W max

Internal rechargeable battery

7305P Series

Bulletin 7305P Vacuum Levels 80 to 550 mm Hg

Air Flow (Pump Inlet):27 LPM (Free Flow) typical (may be lower on battery power)

Collection container capacity Series 800 ml (cc) disposable

Environmental conditions:

Operating temperature .0 °C to 40 °C

Operating relative humidity 0-95%

Operating Atmospheric Pressure 10.2 psi (70 kPA) - 15.4 psi (106 kPA)

Storage and transport temperature .. -40 °C to 70 °C

Storage and transport relative humidity 0-95%

Storage and transport atmospheric pressure 7.3 psi (50 kPA) - 15.4 psi (106 kPA)

Warranty: Two years, excluding internal battery and collection container

Internal battery.90 days

Approvals

7305D Series, & 7305P . . . . IEC 601-1 CAN/CSA-C22.2 No. 601.1-M90; UL 60601-1, EN 60601-1-2

7305P compliant with RTCA/D-160D. .. DO-160D – sec. 21 cat. M for battery power only.

Use on aircraft

Device ratings

Protection against the risks of electric shock. Class I and internal power supply

Discontinued
