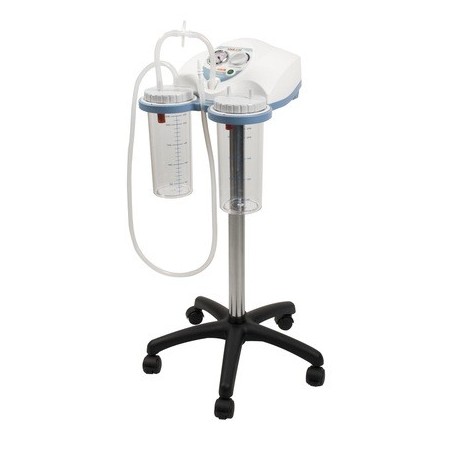

Surgical aspirator NEW ASKIR C30 -RE 410250 2 jars of 2 lt

ASKIR C30 is a surgical aspirator powered by 230V ~ / 50Hz electricity, to be used for the suction of body fluids (such as mucus, phlegm and blood) and equipped with 5 wheels, three of which with a braking device.

Thanks to these features and the performance it is equipped with, this device is particularly suitable for use in the hospital ward, for minor surgery applications and post-operative treatments.

Built with a plastic body with high thermal and electrical insulation in compliance with European safety regulations, the device is supplied with 2 complete sterilizable polycarbonate suction jars and with overflow valve and is equipped with a suction regulator and vacuum gauge located on the front panel.

Appliance designed to offer ease of transport and non-continuous use: in particular, the device must be left to rest for 60 minutes every 120 minutes of operation.
On request, the version with pedal control and version with pedal control and collection flow diverter is available.

Reference : RE 410250

Mod: BASIC 2

BD/RDM : 338256

NDT: Z120105

TYPOLOGY (Directive 93/42/EEC) Class IIa Medical Device

NEW ASKIR MODEL C30

UNI EN ISO 10079-1 HIGH VACUUM / HIGH FLOW

POWER SUPPLY 230V~ / 50Hz 110V~ / 60Hz -

POWER CONSUMPTION 110VA 165VA

FUSE F 1 x 1.6A 250V F 1 x 4A 250V

MAXIMUM SUCTION (without vessel connection) -80kPa (-0.80 Bar)

MINIMUM SUCTION Less than -40kPa (-0.40 Bar)

MAXIMUM SUCTION FLOW (without vessel connection) 40 l/min

WEIGHT 6.2 Kg

DIMENSIONS 320 x 995 (h) x 305 mm

Operation (at 35°C and 110% operating voltage) 120 min. ON / 60 min. OFF

OPERATING CONDITIONS Ambient temperature: 5 ÷ 35°C

Ambient humidity percentage: 30 ÷ 75% RH

Elevation: 0 ÷ 2000m s.l.m.
