Contec 8000 Wireless ECG Workstation - 12 Channels

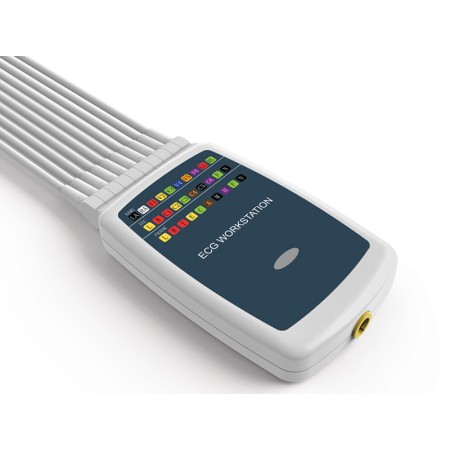

CONTEC 8000 WIRELESS ECG WORKSTATION
Compact and portable device with advanced ECG analysis algorithm that reliably detects arrhythmias.

The high sampling rate (1000Hz) ensures correct tracing, high-frequency display, and printing.

It includes wireless data transmission to PCs to allow you to analyze, manage and store patient reports.

Multiple functions, including: 12-lead ECG, frequency cardiogram, high-frequency ECG, QT internal dispersion analysis, heart rate variability analysis, ECGs stimulation analysis, myocardial ischemia analysis, heart rate turbulence analysis, vectorcardiogram, timed vectorcardiogram and ventricular late potential analysis.

Built-in rechargeable lithium battery, continuous operation for over 7 h.

- Leads: 12 standard leads
- Input mode: protection against fluctuations and defibrillation
- CMRR: > 60dB, >100dB (add filter)
- Time constant: = 3.2s
- Patient leakage current: - Calibration voltage: 1mV
- Sampling: Frequency: Up to 1000Hz
- Accuracy: up to 24-bit
- Input Circuit Current: =50nA
- Input Impedance: = 50MO
- Noise level: = 15μVp-p
- Frequency response: 0.05~150 Hz (-3 ~ + 0.4dB)
- Polarization voltage: ± 500mV
- Print size: A4, B5
- Report format: BMP, PNG, PDF, JPG
- Operating System: Windows 2000 / XP / Vista / 7 / 10 / 11

- 1 ECG lead cable
- 6 precordial electrodes
- 2 extension cables (for electrodes)
- 4 x Limb Clamp Electrodes
- 1 software on CD
- 2 branch cable terminals
- 1 user manual for ECG workstation installation: GB, IT
