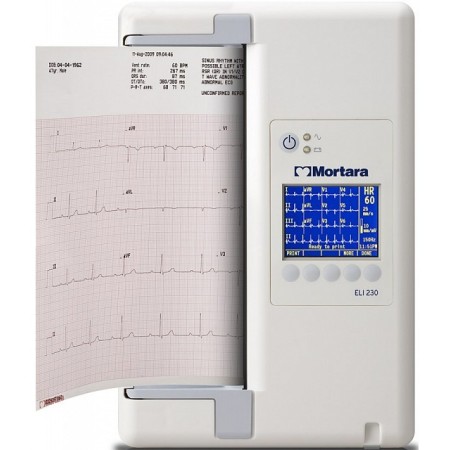

BURDICK ELI 230 Electrocardiograph - 12 Channels Interpretive with Software

BURDICK ELI 230 12-Lead Resting ECG with Interpretation and Software

Quality without compromise
Despite being ultra-portable and compact, the ELI 230 electrocardiograph guarantees complete functionality. Very easy to use, it provides uncompromising high quality in terms of signal, accurate and reliable ECG interpretation, prints on A4 size paper and much more.

12-lead colour display
Display up to 12 leads in the print preview.
Heart rate, track speed (video/print), and gain, filter, time, selections, and menu commands are visible at a glance at the same time.

VERITAS Mortara Resting ECG Analysis Algorithm
The internationally recognized Mortara interpretation algorithm, thanks to specific criteria for adult and pediatric patients, guarantees the physician a second opinion for the interpretation of the 12-lead resting ECG.

Acquisition via traditional module (AM12)
Input dynamics, With the ELI 230 electrocardiograph it is possible to acquire the ECG with detachable leads and the ELI 230 remote control with buttons for acquisition and printing.

Diagnostic quality
Mortara technology ensures the absolute quality of the ECG thanks to a sampling rate of 40,000 Hz/channel, to the advantage of pacemaker recognition.

Long battery life
The ELI 230 is powered by AC power or an internal battery with an autonomy of 200 ECGs.

- Device: 12-lead electrocardiograph
- Input Channels: Simultaneous acquisition of 12 leads
- Lead: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
- Waveform display: 1/4 VGA 320 x 240 backlit color LCD screen; Presentation of leads in 4+4 or 6+6 formats
- Input impedance, input dynamics, electrode bias voltage, common-mode rejection: Compliant with ANSI/AAMI EC11
- Leakage current on patient, leakage current on container: Compliant with ANSI/AAMI ES1
- Sampling rate: 40,000 samples/sec/channel for pacemaker recognition; 1,000 samples/sec/channel for storage and analysis
- Special features: Optional VERITAS software for automatic interpretation with specific age and gender criteria
- Paper: 210 mm thermal paper
- Thermal printer: Computer-controlled, 8 dots/mm
- Thermal printer speed: 5, 10, 25 or 50 mm/s
- Gain: 5.10 or 20 mm/mV
- Report print formats: Standard or Cabrera; 12, 6, or 3+1 channels
- Rhythm print formats: 12, 6, or 3 channels with configurable groups
- Frequency response: 0.05 ÷ 300 Hz
- Filters: High efficiency baseline filter; 50/60 Hz anti-alternating filter; 40 Hz, 150 Hz, or 300 Hz low-pass filter
- Device classification: Class I, Type CF, defibrillation-protected applied parts

Weight and dimensions
- Weight: 3.63 Kg, battery included (without card)
- Dimensions: 29.2 x 20.3 x 10.2 cm

Feeding
Universal power supply (100-240 VAC at 50/60 Hz) 110 VA; Internal rechargeable battery

1 ELI LINK Software
1 Patient Cable
1 roll of paper 210 mm
6 precordial electrodes for adults
4 peripheral electrodes for adults
