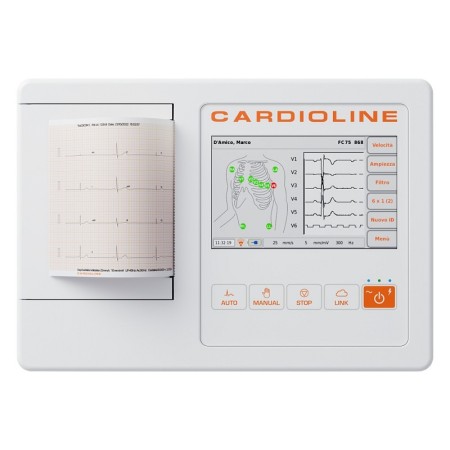

The CARDIOLINE ECG100L touchscreen electrocardiograph is designed for portability and ease of use, while maintaining Cardioline's high quality standards. Featuring a 5-inch backlit color touchscreen display and 5 dedicated buttons, it provides instant access to key functions. The user is guided step-by-step through ECG acquisition, from electrode placement to quality control, printing, and archiving. Automatic, manual, STAT, or rhythm ECGs are easily acquired with a single button. Files can be stored on the device or transferred via USB to a PC or flash drive.

Technical features:
- ECG leads: 12-leads (I, II, III, aVR-LF, V1-6)
- Patient cables: Standard 15D, 10-wire
- CMRR: > 100dB
- Input impedance: > 100MΩ
- Sampling: 32000 samples per second per channel
- ECG resolution: 500 samples per second; 5μV/LSB
- Dynamic range: +/- 330 mV
- Bandwidth: 0.05 - 150 Hz
- Pacemaker Detection: Hardware detection with digital convolution filtering
- Filters: Digital diagnostic high-pass filter; digital adaptive AC interference filter (50/60 Hz); digital low-pass filter
- Defibrillator protection: AAMI/IEC standard
- Front-end performance: ANSI/AAMI IEC 60601-2-25:2011
- Acquisition modes: Automatic (12-lead), Manual (3/6-lead), Stat (12-lead), Rhythm
- Configuration: Standard or Cabrera
- Lead contact recognition: Autonomous on all leads
- ECG measurements: All leads, Medians, Corrected QT, Sokolow-Lyon Index
- Optional interpretation algorithm: Glasgow 12-lead resting ECG, with specific criteria for age, sex and race, including neonatal, pediatric interpretation and acute myocardial infarction recognition
- Power supply: Battery or mains

Equipment:
- IEC ECG patient cable, 10 wires, 4 mm plug
- Universal 4mm plug adapters, 10 pieces
- Disposable ECG electrodes, tab, pack of 100 pieces
- Frequency counter ruler
- Medical AC/DC power supply
- 10A power cable
