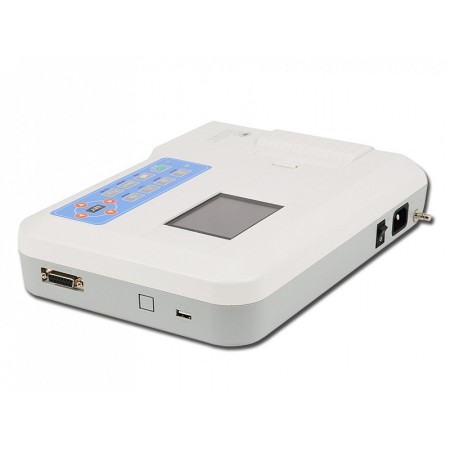

The Vastavusdeklaratsioon ECG A 3 CHANNEL 300G by GIMA offers an advanced solution for cardiac monitoring, with the ability to display up to 12 channels simultaneously. Equipped with a 4.3-inch color LCD screen, it ensures a clear and detailed view of the leads.

Technical specifications:

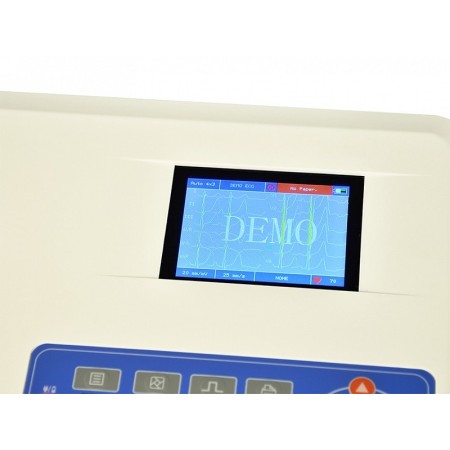

- 4.3" color LCD screen
- Simultaneous display of 12 leads
- Thermal printer
- Power supply CA/CC
- Integrated high-capacity rechargeable lithium battery
- Acquisition of 150 traces in continuous mode
- Integrated database
- Memory for over 1000 examinations
- Digital signal processor for filtering
- Self-measurement, self-analysis, self-interpretation
- ECG-Synchronous software with USB connection
- Internal software: GB, FR, IT, ES, DE, TR, PL, PT, SI, BG, YU, RU, KZ, CN
- ECG-Synchronous PC Software: GB, FR, IT, ES, PL, SI, TR, RO

Manual:
- GB
- FR
- IT
- ES

The USB connection facilitates real-time transmission to a PC, enabling remote analysis, diagnosis, management and printing of data.

Technical specifications:
- Safety type: Class I, type CF applied parts
- Leads: 12 standard
- Sampling frequency: 1000 Hz
- Frequency response: 0,05Hz~150Hz (-3dB, +0,4dB)
- Time constant: = 3,2 s
- CMRR: >100 dB (with filter)
- Sound level: <15µVp-p
- EMG interference filter: 25Hz/35Hz (-3dB)
- AC filter: 50Hz/60Hz (-20dB)
- Recording mode: Thermal printer (32 dots/mm)
- Paper type: 80mm × 20m
- Sensitivity: 2.5, 5, 10, 20, 40 mm/mV
- Printing speed: 25mm/s, 50mm/s
- Power supply: AC 110-220V, 50/60 Hz
- CC - lithium battery: 7,4V, 3500 mAh
- Fuses: 2 pcs. f5×20mm slow-blow AC; T2A/250V (Power supply: 220 V)
- Dimensions: 315 x 215 x 77 mm
- Net weight: 1.6 kg

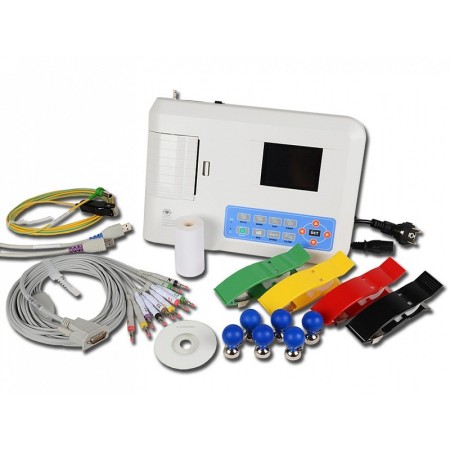

Equipment:
- ECG cable: 1 set
- Clamp limb electrodes: 1 set
- Precordial electrodes: 1 set
- Grounding cable
- Power cable
- Paper roll
- USB connection and PC software
