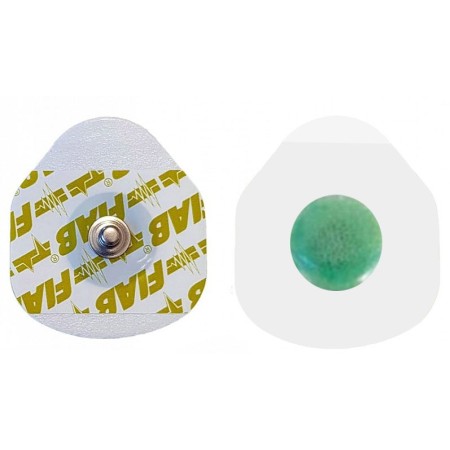

Disposable ECG electrodes, in liquid gel with Ag/AgCl (Silver/Silver Chloride) sensor and stainless steel clip.

FIAB disposable ECG electrodes are suitable for recording resting ECGs, long-term monitoring, stress testing, and Holter monitoring, applying them directly to the skin. The Ag/AgCl sensor provides a stable and reliable ECG waveform. The waterproof medical-grade PE foam outer surface protects the skin beneath the electrode from air and contaminating medical fluids.

Compliant with ANSI/AAMI EC12:2000, it allows for ECG signal recovery after a defibrillator discharge. The pouch can be resealed after opening to better preserve the electrodes that remain inside.

The products do not contain latex.

Pre-gelled electrodes in adhesive sponge (FOAM) with Ag/AgCl sensor and liquid gel.

- Use: Adults
- Connection: clip
- Dimensions: 36mm X 40mm (oval)
- Shape: oval

Electrodes in packs of 50.

Test results according to ANSI/AAMI EC12:2000 specification:
- Average impedance value measured at 10Hz for 12 pairs of electrodes: 30 Ω
- Single pair impedance: 41 Ω
- Offset Voltage: 4.3 mV
- Residual voltage after defibrillation: 12.7 mV
- Polarization change: 0.3 mV/s
- Impedance at 10 Hz after testing: 32 Ω
- Bias current tolerance: 16.1 mV

Maximum values according to ANSI/AAMI EC12:2000 specification:
- Average impedance value measured at 10Hz for 12 pairs of electrodes: 2 kΩ
- Single pair impedance: 3 kΩ
- Offset instability combined with intrinsic noise: 150 μV
- Offset Voltage: 100 mV
- Residual voltage after defibrillation: 100 mV
- Polarization change: 1 mV/s
- Impedance at 10 Hz after testing: 3 kΩ
- Bias current tolerance: 100 mV
