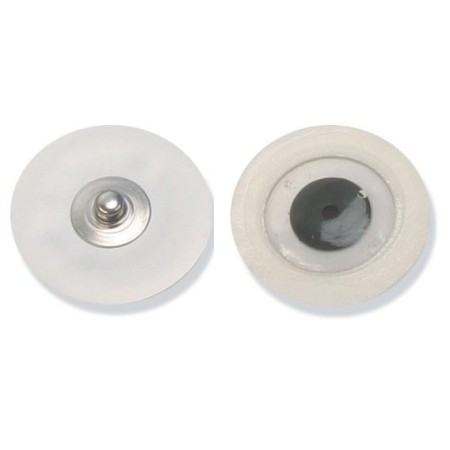

The FIAB PG10C disposable electrode has technical characteristics that make it completely reliable during ECG signal recordings, in electrostimulation, for the detection of surface EMG signals.

The PG10C is pre-gelled and is compatible with all commercially available devices equipped with snap-on cables.

The product does not contain latex.

- Description: Disposable electrode with solid gel and Ag/AgCl collector
- Material: FOAM (medical grade PE foam)
- Thickness: 1 mm
- Size: ∅=26mm
- Adhesive: Biocompatible synthetic resin
- Connection: Clip
- Conductor material: Ag/AgCl (Silver Chloride)
- Gel: Biocompatible solid-state medical adhesive gel
- Compliance with regulations: Directive 93/42/EEC (DL 46/97) and subsequent amendments. Class I medical device

Test results according to ANSI/AAMI EC12:2000 specification:
- Average impedance value measured at 10Hz for 12 pairs of electrodes: 55 Ω
- Offset instability combined with intrinsic noise: 3 μV
- Offset Voltage: 2.1 mV
- Residual voltage after defibrillation: 16 mV
- Polarization change: 0.7 mV/s
- Impedance at 10 Hz after testing: 40 Ω
- Bias current tolerance: 16.1 mV

Maximum values according to ANSI/AAMI EC12:2000 specification:
- Average impedance value measured at 10Hz for 12 pairs of electrodes: 2 kΩ
- Offset instability combined with intrinsic noise: 150 μV
- Offset Voltage: 100 mV
- Residual voltage after defibrillation: 100 mV
- Polarization change: 1 mV/s
- Impedance at 10 Hz after testing: 3 kΩ
- Bias current tolerance: 100 mV

Pack of 30 electrodes
