Electronic meter with oscillometric measurement method with Fuzzy Logic system for fast and accurate measurements with 22-42 cm cuffs.

Special function for analyzing and indicating irregular heartbeats.

Classification of blood pressure from optimal pressure to severe hypertension by displaying a segment on a colored scale indicating the 6 stages of the World Health Organization.

Interactive:
- Indicator of correct wrapping of the cuff on the limb
- Reporting excessive patient movement

3-line liquid crystal display for simultaneous display of systolic, diastolic and pulse values.

Automatic storage of the last 60 measurements dedicated to 4 separate users.

One-button operation: by pressing it, the instrument is activated, completes the entire measurement cycle and automatically turns off about 2 minutes after the last operation to safeguard battery life.

Predisposition for use with mains power supply.

Latex free bracelet in SlimFit nylon, with wrapping ring.

Quality marks:
Clinically Validated Accuracy according to the British Hypertension Society protocol (B.H.S.). The UA-767F meter complies with the requirements of the British Hypertension Society Grade A/A validation protocol. It can therefore be used both in clinical practice and for epidemiological studies or evaluation of drug treatment on patients.

Guarantee
5 years for manufacturing defects.

- Parameters detected: Blood pressure and pulse
- Measurement methods: oscillometric

Measurement range:
- Pressure: 0 - 299 mmHg
- Systolic blood pressure: 60-279 mmHg
- Diastolic pressure: 40-200 mmHg
- Pulse: 40 - 180 beats/minute

Precision:
- Pressure: ±3 mmHg
- Pulse: ±5%

- Pressurization: automatic
- Inflation pressure range: 0 – 300 mmHg

Display:
- liquid crystal:
- during measurement: pressure levels, patient movement signaling, cuff wrapping indication
- Measurement term: pressure and pulse values, cardiac arrhythmia indicator, WHO indicator, error codes

- Power supply: nr. 4 x 1.5V alkaline batteries – type AA
- Battery life: 700 sizes
- Storage capacity: last 60 measurements for each of the 4 users

- Dimensions: 140 (W) x 105 (D) x 60 (H) mm
- Weight: 255 grams excluding batteries
- Operating temperature:+10 °C +40 °C
- Storage temperature: -20 °C +60 °C
- Clinical Tests: In accordance with ANSI/AAMI SP-10 1992 EMC: IEC 60601-1-2:2007

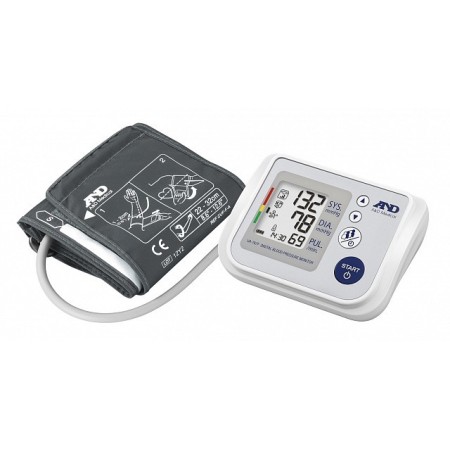

- UA-767F
- Latex free adult bracelet
- Carrying case
-Nr. 4 x 1.5V alkaline batteries – type AA
- User manual
