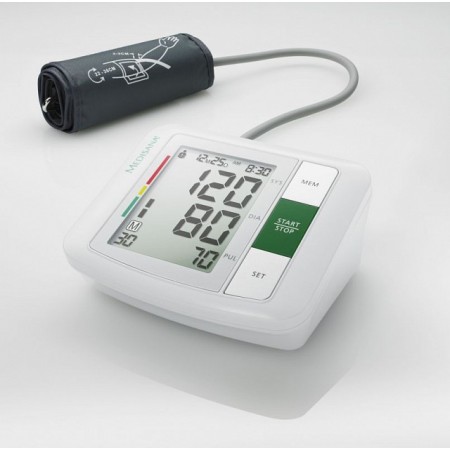

Medisana BU510 is a digital blood pressure monitor intended for measuring blood pressure on the arm.

The measurement with the 51160 sphygmomanometer is carried out by means of a microprocessor which, thanks to a pressure sensor, is able to evaluate the pressure fluctuations that occur in the arteries and which are detected by inflating and deflating the pneumatic sleeve.

Main Features of the BU510 upper arm blood pressure monitor:
- Precise measurement of blood pressure on the arm
- large sleeve (arm circumference between 22 cm and 36 cm)
- Easy reading thanks to very large font sizes (up to 2.2 ccm)
- The monitor displays systole, diastole, heart rate, date and time
- Arrhythmia detection
- "Traffic light" function to classify the measured values according to the classification system of the World Health Organization
- 2 users with 90 memory spaces each
- calculation of the average value of all data stored for each user

- Display System: Digital Display
- Memory locations: 2 x 90 for measured data
- Measurement method: Oscillometric
- Power supply: 6 V=, 4 x 1.5 V AA LR6 batteries

- Blood pressure measuring range: 0 – 299 mmHg
- Maximum static pressure deviation: ± 3 mmHg
- Pulse measuring range: 40 – 199 beats/min
- Maximum deviation of pulse values: ± 5 % of the value

- Pressure generation: Automatic with pump
- Air Escape: Automatic
- Automatic switch-off: after approx. 3 min.

- Dimensions (L x W x H): approx. 130 x 109 x 60 mm
- Sleeve: 500 x 150 mm / 22 – 36 cm for adults
- Weight (device unit): approx. 254 g without batteries

- Operating conditions: +5 °C to +40 °C, 15 - 85 % humidity max. relat.
- Storage conditions: -20 °C to +55 °C, 10 - 85 % humidity max. relat.

- Name and model: MEDISANA blood pressure monitor BU 510
- Item number: 51160
- EAN code: 40 15588 51160 8

1 Upper arm blood pressure monitor Medisana BU 510
1 bracelet 22-36 cm
4 batteries (type AA LR6) 1.5V
1 x Storage Bag
1 user manual
