Venous insufficiency measuring device "VenoScreen Plus"

The device is used for venous diagnosis and is based on the Light-Reflection Rheography (LRR) / D-PPG method.

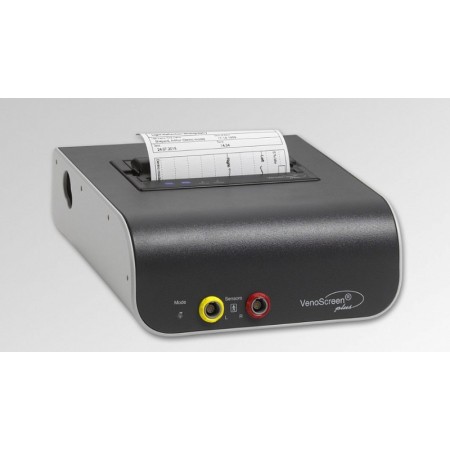

The system is designed as a standalone device and consists of a measuring unit that includes a thermal printer for printing examination protocols and a mobile color display with a touchscreen for operating the measuring device and displaying the measurement process and examination results.

The unit is optimized for mobile use, extremely easy to use and therefore very suitable for screening tests for varicose veins in pharmacies. The essential features of the system are:

Simultaneous measurement on both legs for rapid diagnosis and bilateral comparison.
Self-calibrating system to adapt the sensors to the skin and also allow measurements through medical compression stockings.

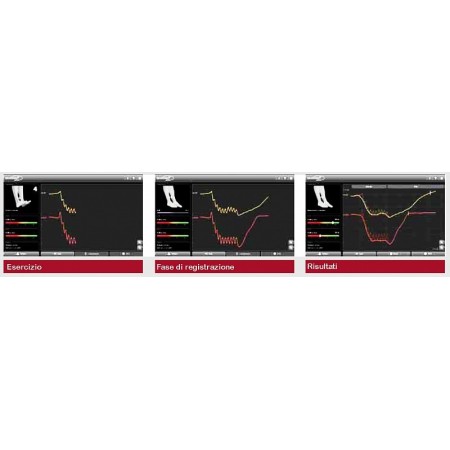

Automated computerized measurement procedure with acoustic and visual support during the exercise test.
Computerized evaluation and classification of measurement results.
Examination results database.
Protocols can be printed on a thermal printer.

Applications

LRR · Light-reflection rheography for measuring venous pump volume and refill time to diagnose venous valve function and the effectiveness of the venous muscle pump.

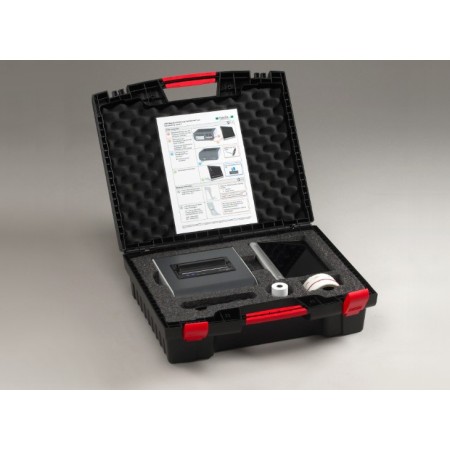

1 LRR sensor / red
1 LRR sensor / yellow
1 power supply module
1 power cable
1 control panel with holder
1 connection cable for control panel
1 manual
1 thermal paper roll
2 elastic bands
1 case fastening (100 pieces)
