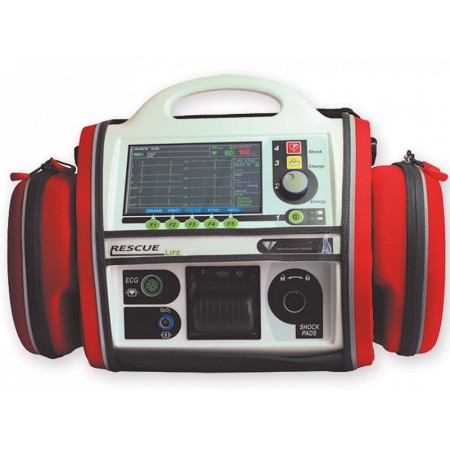

Rescue Life is an external defibrillator with monitor.

The RESCUE LIFE is designed for use both in hospital and in out-of-hospital emergencies (BLS and ALS protocols).
Lightweight, easy to carry, attractive line, ergonomic shape, attention to the smallest details.
The IPX4 rating ensures operation even in adverse weather conditions.

Entirely Italian production.

SpO2 and Pacemaker
The new range includes models with pacemaker and SpO2.
ECG module for monitoring (not for diagnosis) up to 12 leads: standard 5-lead patient cable, (I, II, III, aVL, aVR, aVF) or optional 10-lead (for 12 leads).

NIBP
The available NIBP option is based on Sun Tech Medical's Advantage A+ technology, which provides precise and accurate NIBP measurements during movement. Suitable for adults, children, and neonates.

5.7'' or 7" (Rescue Life 7) color TFT LCD display
Bright, high resolution, with a wide viewing angle to see up to 12 ECG channels simultaneously.

Data management
For all AED models, memory is based on a 4GB flash disk for 300 hours of recording.

Asynchronous and Synchronous Mode
- in asynchronous defibrillation: Rescue is recommended for patients with the following symptoms: loss of consciousness, absence of normal breathing and absence of signs of circulation and heartbeat
- in synchronous defibrillation: Rescue is recommended for patients with ECG indication of atrial fibrillation.

3 operating modes: manual, AED, advisory
- in manual mode RESCUE LIFE is intended for use by healthcare personnel trained in cardiopulmonary resuscitation.
Only 3 operations: energy selection from 1 to 230J, energy charging and discharging
- In AED mode, RESCUE LIFE is intended for use by personnel authorized by a physician or medical director. Voice prompts and display messages assist the operator during cardiopulmonary resuscitation (CPR), automatically charging to 150J when a shockable ECG rhythm is detected.
- in Advisory mode, the system alerts in cases where defibrillation is recommended, leaving the operator the choice of energy and charge

1 pc.

Display
- high contrast TFT Color LCD 5.7" (320x240 pixels)
- ECG through the defibrillation pads (1 trace) or via the 5 or 10 lead patient cable x 3, 6 or 12 traces and SpO2 value
- automatic switch when the patient cable is inserted
- filters: 50/60 Hz baseline, EMG
- heart rate indicator

ECG monitoring
- bandwidth: 0.5 to 120 Hz (-3db) with filters off

Filters for ECG parameters
- speed 5, 10, 25, 50 mm/sec.
- gain 2.5, 5, 10, 20, 40 mm/mV with the patient cable; automatic with the paddles.
- Digital HR report on display from 20 to 300 BPM (±2%)
- HR (heart rate) alarm configurable up to 250 BPM, minimum HR 20 BPM

Pulse Oximeter (SpO2) 33540-1-5-6-7-8-9, 33597-8 only
- oxygen saturation: 0 to 100%
- pulse rate: from 30 to 250 beats/min.
- SpO2 accuracy: 70-100% ± 2 digits for adults using finger clip sensors
- SpO2 alarms (min. 50%)

Non-invasive pacemaker (33543-4, 33591 and 33547-8-9)
- rectangular wave, pulse time: 22 ms (0-190 mA)
Operating mode: fixed or on demand
Pulse rate: 0 ppm to 180 ppm adjustable in 5 ppm increments
- pulse voltage: MAX 150 V

NIBP (33547-8-9 only)
- oscillometric technique
- accuracy compliant with ANSI/AAMI SP10-2002, EN 1060-4
- application on patient: adult/pediatric/neonatal
- mmHg range (adult / pediatric / neonatal)
systolic: 40-260 / 40-160 / 40-130
MAP: 26-220 / 26-133 / 26-110
diastolic: 20-200 / 20-120 / 20-100

Printer
- manual/auto-print mode (10" pre and post)
- built-in thermal printer for ECG traces and event documentation including HR/SpO2
- printing speed 5, 10, 25 and 50 mm/sec.
- paper width: 58 mm

Safety
- two handles for safety during shock
- ECG detection isolation class CF
- internal energy discharge after 30 seconds of standby from charging

Diet
Internal Ni-Mh battery (Rescue Life 5.7")
Internal Li-ion battery (Rescue Life 7")
(95% charge time = 2 hours)
- Universal charger 110/240 VAC, 50/60 Hz
- Size: 36x24x34 cm
- Weight: 5.5 kg

General information
Memory: 4GB internal flash up to 300 hours of ECG data, events and views

Internal Li-ion battery
Printer
5-lead patient cable
1 roll of paper
2 disposable plates
2 reusable electrodes for adults and children
Universal charger
