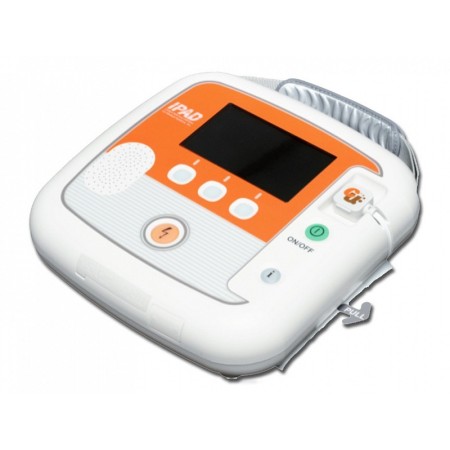

iPad CU-SP2 Defibrillator - AED

Semi-automatic mode
Semi-automatic external defibrillator applicable to patients with sudden cardiac arrest (SCA).
CU-SP2 is a battery-operated, easy-to-use, compact, lightweight and portable defibrillator.
The AED automatically reads the patient's electrocardiogram (ECG) and determines whether a cardiac arrest (SCA) requiring defibrillation has occurred, making it easy for emergency medical technicians, medical professionals, and lay users to use.

Innovative features:
- Automatic volume adjustment
It automatically adjusts its volume in proportion to the noise emitted in the surrounding environment.

- Pre-connected paddles for a defibrillator that is always ready for use
It features pre-connected pads housed in a special compartment under the defibrillator. This ensures the defibrillator is ready for use as quickly as possible. It also provides precise monitoring of the pads' lifespan. The front of the defibrillator features a light indicator that changes color both three months before the pads expire and once they have expired.

- CPR detection
CPR is vital to ensure the patient has the best chance of survival. The iPAD CU-SP2 detects whether the rescuer is performing CPR or not and prompts them to perform it or continue it, respectively.

- Easy communication with CU-EX1 software
Allows you to view and analyze information such as on-time, patient heart rate, and shocks applied. Stores 3 events in internal memory (up to 17 hours per event).

- Wireless ECG transmission device (CU-EM1) - optional
In monitoring mode, the iPAD CU-SP2 uses Bluetooth to receive ECG data from the CU-EM1 device and displays it on the LCD screen.

- Printer - optional
iPAD CU-SP2 supports connection with an external Bluetooth printer.

- Software selectable in 16 languages GB, FR, IT, ES, DE, PT, NL, SE, PL, FI, DK, NO, CZ, GR, UA, KR.
All languages have their own manual, except NL, SE, UA, FI, FR, which have the manual in English.

1 pc.

Defibrillator
Mode: Semi-automatic
Waveform: Biphasic truncated exponential
Energy: AED mode: 150/200J fixed or 150-150-200J increasing energy
Charging time: <10 seconds
Charging time after end of CPR: At least 6 seconds
Waterproof: Protection against jets of water IPX5 according to IEC60529 (IP55)
Dust protection IP5X according to IEC60529
Dimensions - Weight: 260x256x69.5 mm - 2.4 kg

User Interface
User Support: Detailed voice and text messages
CPR Guide: Voice prompts guide you through CPR on adults and children.
Controls: On/off button, “i” button, discharge button, programmable buttons
Indicators: Graphic LCD display (status, user guide, ECG, heart rate)
Sensors: Plate expiration date, plate connection status
CPR monitoring, ECG monitoring, automatic volume adjustment

Data recording and transmission
IrDA port: Wireless data transmission to PC, SD Card
Internal memory (Nand-flash): ECG, events
Memory capacity: Multi-recording 3 events / Max 17 hours per event
Bluetooth: Communication with the printer or ECG CU-EM1
Data review PC program: CU-EX1

Patient analysis system
Patient Analysis: Shockable Rhythms - Ventricular Fibrillation, Tachycardia
Sensitivity/Specificity Complies with AAMI DF80 guideline

Drums
Standard Type: DC 12 Volt 4.2 Ah, LiMnO2
Capacity: Minimum 200 shocks (150J)
Rechargeable (optional) Type: DC 11.1 Volt 1.9 Ah, Lithium-ion, rechargeable
Capacity: Minimum 60 discharges or 3 hours of operation

Operating altitude range:
Altitude 0-5,000 m

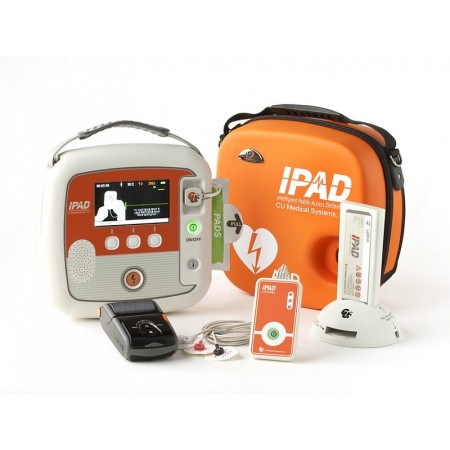

Adult plates
Disposable lithium battery
Paper manual (GB, IT)
Transport bag
Manual on CD in the above languages
