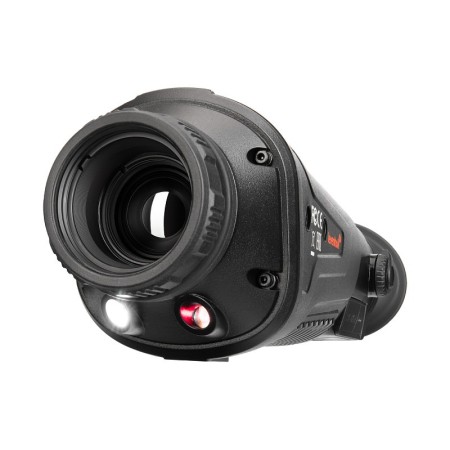

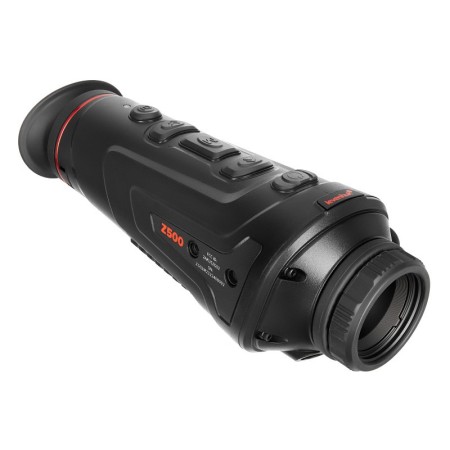

Fatum Z500 Levenhuk Thermal Monocular Scope
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
The Levenhuk Fatum Z500 thermal imaging monocular is a tool with a perfect balance between performance and reliability. It can be used for outdoor activities: night surveillance, search and security operations, hunting, forestry, hiking and sports. Designed with a compact format and easy to carry, it is easily held with one hand and can be used even in poor weather conditions.
Observations can be made at magnifications ranging from 1.7x to 6.8x, with a smooth digital zoom that offers great freedom of observation. The microbolometric matrix has a resolution of 400x300 pixels and a total of 6 color palettes available. There is an automatic hot spot detection feature.
In terms of detection and identification ranges, this thermal imaging monocular offers excellent performance. Larger objects, such as cars, can be detected from as little as 1700 m away, while classic hunting targets (wild boar, deer, etc.) can be detected from 450–590 m. The target can also be illuminated by a laser designator, whose operating range is limited to 200 m.

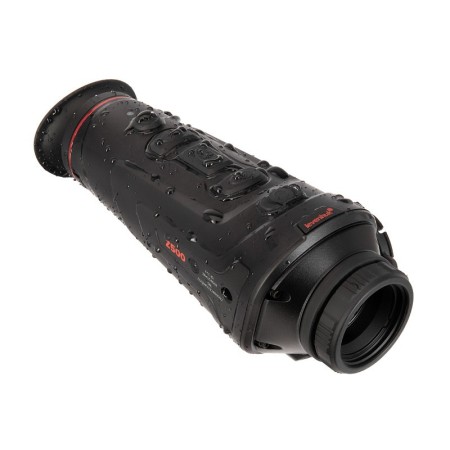

The power source is a non-removable block that includes two rechargeable batteries, for a total capacity of 6000 mAh. Thanks to this, the thermal imaging monocular has up to 5 hours of battery life at full capacity. Other design features include a tripod housing (with 1/4' thread) and a water-resistant body (IP66 rated).
The thermal imaging monocular is equipped with a built-in recorder: the videos are stored in the device's memory (16 GB). In addition, there is a rangefinder to measure the distance to various objects. This feature proves to be especially useful when camping and hunting. There is a microHDMI port, a USB Type-C port, and Bluetooth and Wi-Fi connectivity for pairing with external devices. The thermal monocular supports the TargetIR mobile app, which can be used to change settings, organize your photo and video collection, or view images on your smartphone screen in real time, so you can show them to multiple people at once.
Key features:
- Detection range: up to 1700 m, smooth digital zoom
- 400x300 pixel matrix, 6 color palettes, laser designator

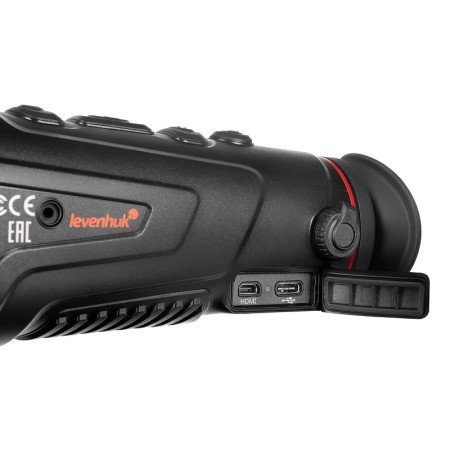

- Wi-Fi, Bluetooth, ports: microHDMI and USB Type-C
- Supports TargetIR app
- Built-in recorder with 16 GB memory and rangefinder

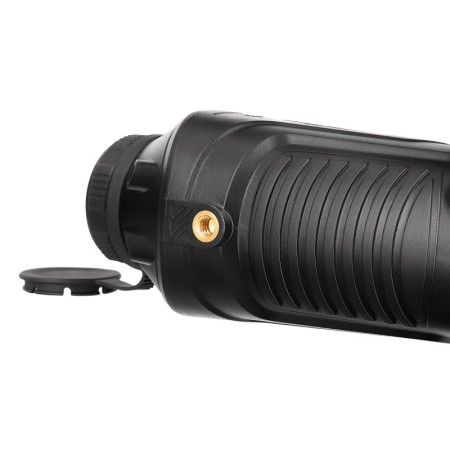

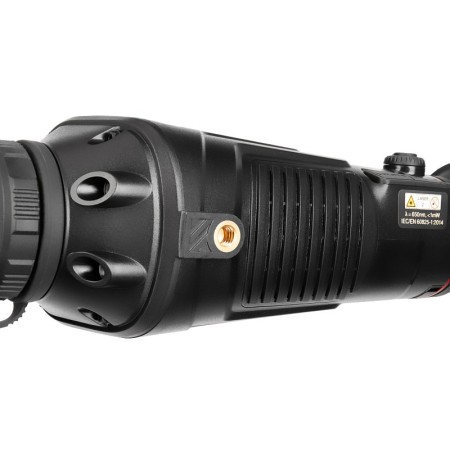

- Water-resistant body, 1/4' tripod housing
- Battery-powered, 5 hours of battery life
- Lightweight: 0.5 kg

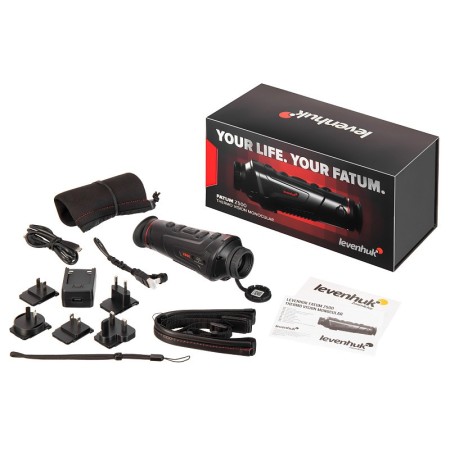

The kit includes:
- Monocular thermal imager
- HDMI cable
- USB Type-C Cable
- Power supply
- Adapters for electrical sockets – 5 pcs. (UK, US, EU, AU, CH)
- Case
- Shoulder strap

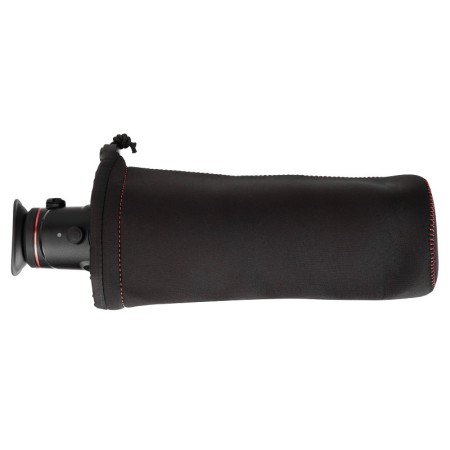

- Protective cover for the eyepiece
- User Manual & Warranty Card
| Brand | Levenhuk Inc., USA |
| Guarantee | 2 years |
| EAN | 5905555001913 |
| Package size (LxWxH) | 35x20x18 cm |
| Shipping Weight | 1.76 kg |
| Type of thermal imaging device | monocular, tripod mountable |
| Detection range, m | 1700 (car, 2.3x2.3 m), 700 (person, 1.8x0.5 m), 590 (deer, 1.5x0.5 m), 450 (wild boar, 0.9x0.7,m) |
| Detection range, m | 450 — 1700 |
| Identification range, m | 700 (car, 2.3x2.3 m), 350 (person, 1.8x0.5 m), 290 (deer, 1.5x0.5 m), 220 (wild boar, 0.9x0.7,m) |
| Microbolometric matrix | uncooled, vanadium oxide |
| Microbolometric matrix resolution, px | 400x300 |
| Pixel size, μm | 17 |
| Spectral range, μm | 8–14 |
| Frame rate | 50 Hz |
| Thermal Sensitivity (NETD), mK | ≤30 |
| Calibration | automatic, shutter, manual |
| Adjustable parameters | brightness (ten levels), contrast (ten levels) |
| Color palettes | Black Hot, White Hot, Blue Hot, Green Hot, Red Hot Customizable |
| Laser Designator | +, range: up to 200 m, color selection: red, yellow, green |
| Objective | germanium |
| Focal length, mm | 25 |
| Focal length, mm | from 0 to 10 |
| Opening Report | f/1.1 |
| Optical magnification | 1.7x |
| Digital magnification | 1–4x |
| Field of view (horizontal)x(vertical), ° | 15,4х11,6 |
| Fire | manual |
| Eyepiece diopter adjustment, diopters | -4/+2 |
| Display | FLCOS, adjustable brightness (10 levels) |
| Display resolution, px | 1280x960 |
| Battery life, h | 5 |
| Moisture resistance | Yes |
| Boot time, s | 2 |
| Operating Temperature Range, °C | -10 — 50 |
| Operating Humidity Range, % | 10 — 95 |
| Built-in rangefinder | Yes |
| Possibility of connecting additional equipment | iOS and Android mobile devices (TargetIR app), external display |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi Settings | 2.4 Hz, range: 15 m (unobstructed line of sight) |
| Built-in recorder | Yes |
| Interface connectors | Type-C (USB 2.0) for microHDMI charging and data transfer for video output |
| Adaptable to a tripod | Standard 1/4' thread |
| Tripod Installation | Yes |
| Set with case/case/bag | case |
| Extra elements | Auto Power Off Function, Auto Hot Spot Detection, Auto Sleep Mode, Picture Enhancement Function, Picture in Picture Mode, Shock, Vibration and Drop Resistant (less than 1m) |
