Levenhuk Nelson 8x42 Monocular with Reticle and Compass
zoom_out_map
chevron_left chevron_right

Levenhuk Nelson 8x42 Monocular with Reticle and Compass

€89.96 Tax included

€73.74 Tax excluded

Shipping in 3/7 days.
local_shipping Shipping in 3/7 days.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description

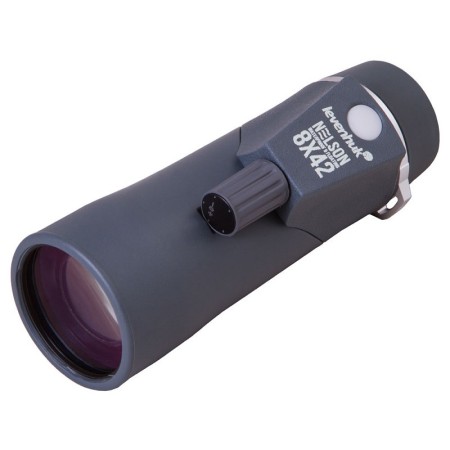

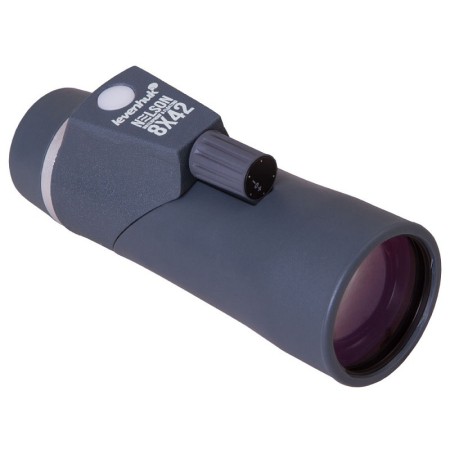

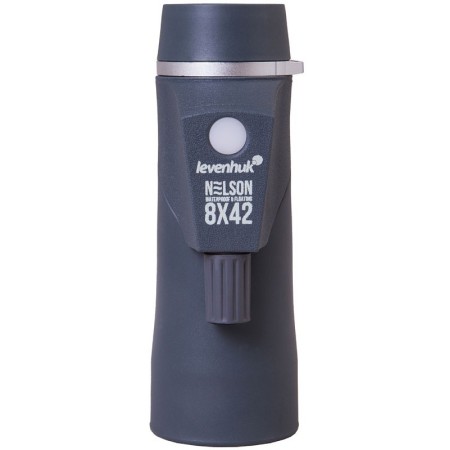

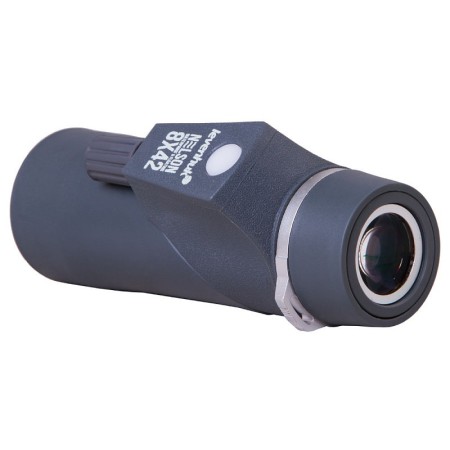

Levenhuk Nelson 8x42 Monocular will be a faithful companion in the detailed study of remote objects, calculating the distance to them or determining the direction. This optical instrument has a built-in rangefinder and compass. It is a perfect tool for fishing enthusiasts or sea excursions.

You can see the instrument dials in the eyepieces. All calculations are done manually based on visual values. You can calculate the distance to objects with a known size (height) using the rangefinder indications and a formula. Or, if you know the size of an object you can calculate the distance to it.

The division value in the compass is 1°. The instrument indicates the direction to the object in degrees. North is 360°, south is 180°, east is 90°, and west is 270°. The compass has no illumination, so natural light is needed for observations.

This lightweight and compact instrument features 8x magnification and an aperture of 42 mm. The monocular with a wide field of view (120 m at a distance of 1000 m) allows comfortable study of extended objects.

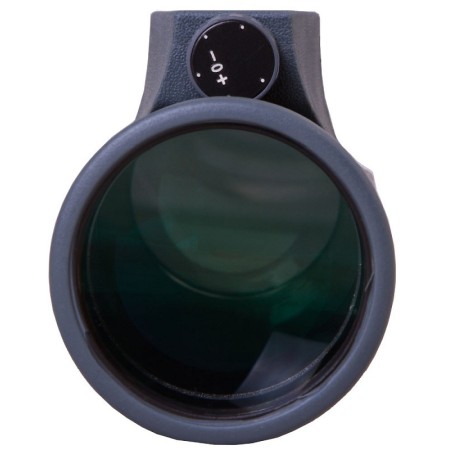

The optical elements are made of BaK-4 glass. Fully multi-coated lenses provide a bright and sharp image. The eyepiece diopter adjustment is customizable over a wide range.

The waterproof body is made of sturdy yet lightweight plastic. Nitrogen filling prevents the lenses from fogging up during sudden temperature changes.

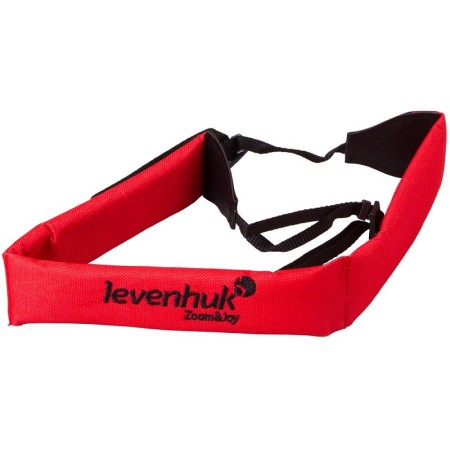

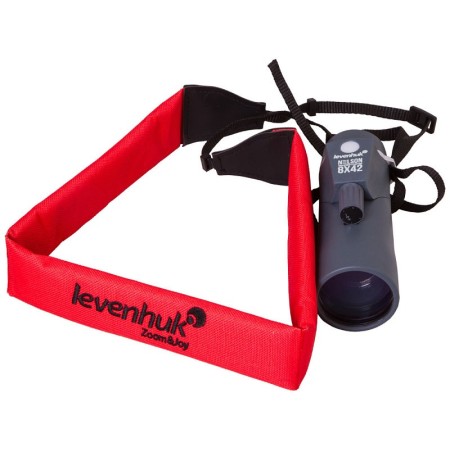

We recommend using this monocular with the Levenhuk FS10 Floating Strap when you are close to water, as this brightly colored accessory will prevent the optical instrument from sinking and getting lost.

Characteristics:

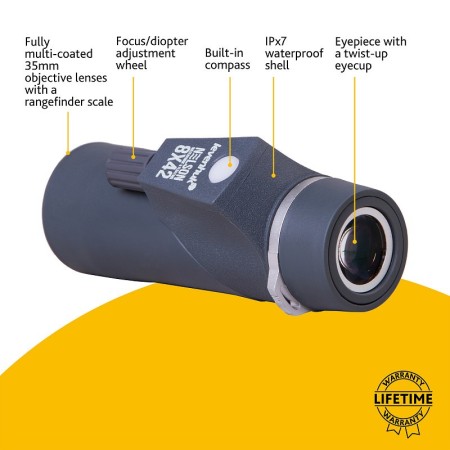

  • Classic marine monocular with integrated compass and rangefinder
  • Wide field of view and small focus distance at close range

The kit includes:

  • Monocle
  • Lens cap
  • Cleaning cloth
  • Shoulder strap
  • Custody
  • User manual and lifetime warranty
Brand Levenhuk Inc , USA
Warranty, years for life
EAN 5905555001739
Package size (LxWxH), cm 18x9x7
Shipping weight, kg 0.445
Relative brightness 27.56
Twilight Factor 18.33
Exit pupil diameter, mm 5.25
Eye distance, mm 23
Minimum focusing distance, m 3
Eyepiece diopter adjustment, diopters ±4
Airtight design yes
Body filling material nitrogen
Waterproof yes
Body plastic
Eyecup twist up
Moisture resistance yes
Field of view, m/1000 m 120
Operating temperature range, °C -20 — 55
Material of the optics BaK-4
Lens treatment fully multi-coated
Eye 2 optical elements in 1 group
Objective 3 optical elements in 2 groups
Magnification, x 8
Objective lens diameter (aperture), mm 42
Field of view, ° 7
Moisture/water protection level IPx7 waterproof (protected against immersion to a depth of less than 1 m)
Built-in rangefinder yes

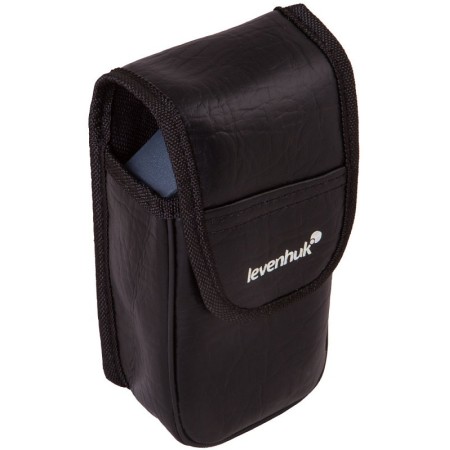

Set with pencil case/case/bag pencil case
With compass yes
Data sheet
Levenhuk
SGLV72111
New
