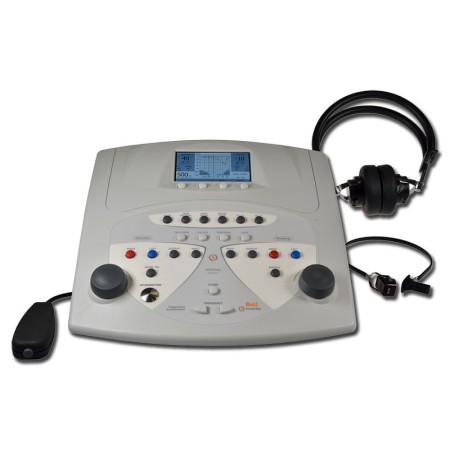

BELL PLUS DIAGNOSTIC AUDIOMETER - air + bone + masking + software DAISY-MAESTRO

Bell is a basic diagnostic audiometer for bone and air audiometry, fast and accurate. Its ease of use, fast and reliable “automatic test” mode, user-friendly interface and easy portability make Bell the ideal instrument for private clinics, multi-specialty practices and occupational medicine applications.
- pure-tone audiometry in AC/BC
- Hughson-Westlake automatic threshold test
- colour graphic display
- internal memory for 100 patients
- economical solution
- supplied with an air-conduction headset and bone vibrator

Maestro software interface
The Maestro module is the software for the Bell Plus audiometer. By connecting the device to a PC via USB, you can view examination results in real time and download the data. This software also allows you to control all the audiometer’s functions.

Manual: GB, FR, IT, ES, DE, PT

Bell Plus requires annual calibration by an authorised centre. The list of countries where a centre is available is provided at www.gimaitaly.com.

Made in Italy.

1 piece. Device type: hybrid audiometer
Class EN 60645-1, ANSI S3.6 3 - diagnostic
Version AC/BC
Masking NBN, WN
Insert earphone for masking: Yes
Warble tone: Yes
Pulsed tone 0.5 Hz, 1 Hz, 2 Hz
Frequency range 125-8000 Hz
Maximum signal intensity AC: -10 to 120 dB HL / BC: -10 to 80 dB HL
Attenuator step 5 dB
Automatic audiometry: automatic HW threshold
Talk over: internal or external microphone
Display type: colour graphics
Resolution, display size 480x272, 4.3”
Internal memory 100 patients
Power supply 100-240 V, 50/60 Hz
Dimensions - weight 32x32x9 cm - 1.8 kg
Windows compatibility 7, 8, 10; supra-aural headphones TDH-39
B71 bone vibrator
Patient response button
Plastic cover
Medical power supply
User manual
