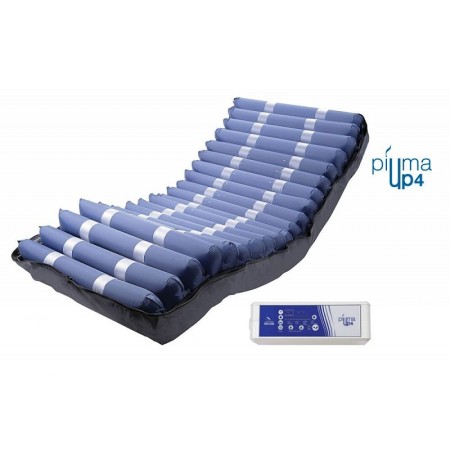

Piuma UP4 alternating cycle anti-decubitus kit – Nylon+TPU mattress – H 20.3 cm with 20 interchangeable elements and compressor with adjustment


Suitable for the prevention of bedsores up to the IV STAGE. The first four elements are static with head cushion function; the remaining part is divided into 2 sections with alternating 2-way operation; complete with a padded blanket in biocompatible Nylon/PU, waterproof, breathable, verified according to European fire reaction standards and equipped with zip on all four sides for easy removal and cleaning. Mattress is fixed to the bed by means of straps supplied and equipped with cable grommets. The height of the elements allows the mattress to be used without the use of an additional mattress. The elements are made with the CELL-ON-CELL technique which divides the section into two individual modules of which the lower one remains constantly inflated in order to avoid an excessive BOTTOM-OUT effect, and ensure safety in the event of a power failure. The digital compressor is equipped with pressure and cycle duration regulation, visual and audible alarm for low pressure and interchangeable air filter. The STATIC function locks the alternating system and makes it a normal mattress. Mattress/compressor connection via quick connectors with closure, which can be used in case of patient transport.

Nomenclature code DM332/99 03.33.06.021 DPCM 12.01.2017 04.33.06.018 / 04.33.06.021

Compressor Technical Specifications (LAR712)

– Dimensions: L:300 x D:135 x H:110 mm
– Power supply 220V / 50 Hz
– Pressure delivered 50~120mmHg
– Power cable 5 m
– 8/9LPM air outlet
– Adjustable cycle time 10-15-20-25 min
– T1A 250V fuse
– Noise 20-25 dB

Mattress Technical Specifications (LAR404)

– Operating dimensions: L:2000 x D:860 x H:210 mm
– Material: Nylon+TPU
– Height of the inflated element: 20.3 cm
– Number of elements 20 (of which 8 micro-perforated)
– CPR valve Deflation time about 15 sec.
– Capacity: 200 kg
