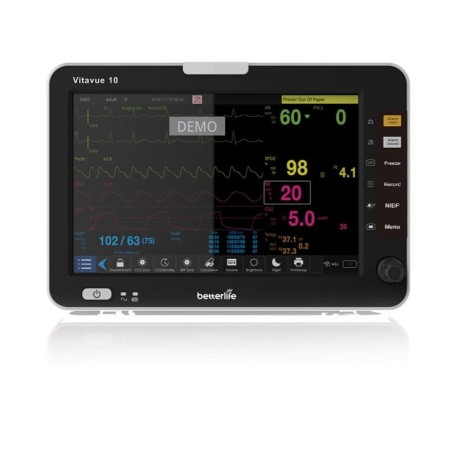

Multi-parameter patient monitor with optional printer – 10″ touch screen display
Multi-parameter monitor with high-resolution display, resistant and compact structure, equipped with a comfortable handle for easy movement.

3-5 channel ECG display, RESP, SpO2, NIBP, PR, 2-TEMP. Arrhythmia and ST segment analysis.

Pacemaker detention, defibrillation and protection from electrosurgical interference.

168 hours of data storage and 4,000 NIBP measurements.

2 USB ports and ethernet port.

Optional built-in printer.

Display
TFT LCD: 10” touch screen
Resolution: 1280×800
Waveforms displayed: Up to 7

ECG
Leads: 5 leads and 3 selectable leads
Display Sensitivity: Auto x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
Scan speed: 6.25, 12.5, 25, 50 mm/s
Heart rate range: (HR) 20~300 bpm
Resolution: 1 bpm
Accuracy: ±2 bpm or 2%
CMRR: Diagnostic mode > 95 dB; Monitoring mode > 105 dB; Surgical mode > 105 dB
ST segment monitoring: Measuring range: -2.0 mV ~ 2.0 mV; Alarm range: -2.0 mV ~ 2.0 mV

RESP
Method: Transthoracic impedance
Bandwidth: 0.1Hz ~ 3Hz
RR measuring range: Adult 0~120 rpm; Pediatric/Neonatal 0~150 rpm
Accuracy: 6-150 rpm: ±2 rpm or 2% 0-6 rpm: not specified
Apnea alarm threshold: 10, 15, 20, 25, 30, 35, 40 s

SpO2
Measuring and alarm range: 0~100%
Resolution: ≤ 1%
Accuracy: ±2% (70~100%, Adult, Pediatric) ±3% (70~100%, Neonatal)
Perfusion Index Range: 0.1-20%
PI Resolution: 0.1-9.99%: 0.01% 10-20%: 0.1%
Pulse measurement: 25~240 bpm
Resolution: 1 bpm

NIBP
Method: Oscillometric
Operation: Manual/Automatic/Continuous
AUTOMATIC measurement interval: Adjustable (2.5-120 min)
Unit of measurement: mmHg/kPa
Measurement type: Systolic, Diastolic, Mean
Resolution: 1 mmHg
Accuracy Max. mean error ± 5 mmHg
Max standard deviation: 8 mmHg
NIBP pulse measurement range: 20~300 bpm
Resolution: 1 bpm

Temperature (2 channels, 1 probe included)
Measuring/alarm range: 15~50°C
Resolution: 0.1°C
Accuracy: ±0.2°C (including probe error)

PRINTER (OPTIONAL)
Thermal Paper: 48 mm
Print speed: 12, 25, 50 mm/s
Number of tracks: 3

Diet
Power outlet: 100~240V AC, 1.4A, 50/60Hz
Rechargeable lithium battery: 2,600 mAh

Dimensions L:27.8 x D:12 x H:18.9 cm
Weight 3.5 kg

Accessories Supplied
– Cod. LTR382 1 5-way clip-on ECG cable protected against shocks (not illustrated)
– 1 ECG electrode kit, adult, disposable (not illustrated)
– Cod. LTR384 Finger SpO2 sensor, adult, reusable (not illustrated)
– Cod. LTR387 NIBP Cuff, Adult, Reusable (not illustrated)
– NIBP tube (not shown)
– Cod.LTR385 Skin temperature probe, reusable (not illustrated)
– Power supply (EUR standard) (not illustrated)
– Ground cable (not shown)
– Rechargeable lithium battery (2600 mAh) (not shown)

Languages available upon request
Italian, English, Spanish
