Vermed electrodes for Akern bioimpedance - A10023 Strip Connection - 100 electrodes

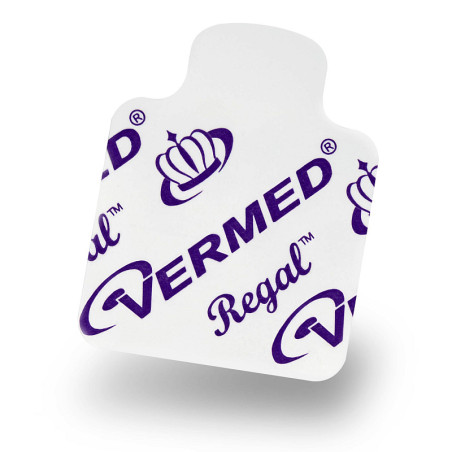

Nissha - Vermed 's Regal 6500044V tab electrodes are specifically designed for bioimpedance and resting ECG measurements, ideally compatible with Akern devices. They offer high performance thanks to a combination of advanced materials and a design optimized for professional clinical use.

The silver/silver chloride coating and conductive hydrogel adhesive ensure the highest quality signal transmission, exceeding AAMI standards for disposable pre-gelled electrodes. The patented solid gel ensures superior adhesion , minimizing the need for post-use cleaning.

• Format: square
• Dimensions: 36.57 x 28.57 mm
• Backing material: synthetic paper
• Gel type: hydrogel conductive adhesive
• Single-use: eliminates the risk of cross-contamination
• Flexible substrate: adapts perfectly to the body surface
• Large contact surface: improves adhesion and reduces impedance
• Packaging: 1 resealable bag of 100 electrodes

These electrodes comply with the Medical Device Directive 93/42/EEC and are CE marked. They are also latex-free and certified according to the ISO 10993 standard, guaranteeing safety and biocompatibility for use on patients.

Technical parameters:

• ACZ Impedance (before defibrillation simulation) @10 Hz: Ohm
• DC offset voltage (before defibrillation simulation): mV
• SDR Slope (residual potential after defibrillation) @30 sec int.: mV/sec
• ACZ impedance repetition (after defibrillator simulation): Ohm
• COIIN (combination of offset instability and internal noise): μV
• Bias current tolerance (DC offset voltage after DC loading): mV

Thanks to their construction quality and reliability, Vermed Regal electrodes represent an excellent choice for healthcare professionals working in diagnostic and clinical fields, particularly for bioimpedancemetry applications with Akern equipment.
