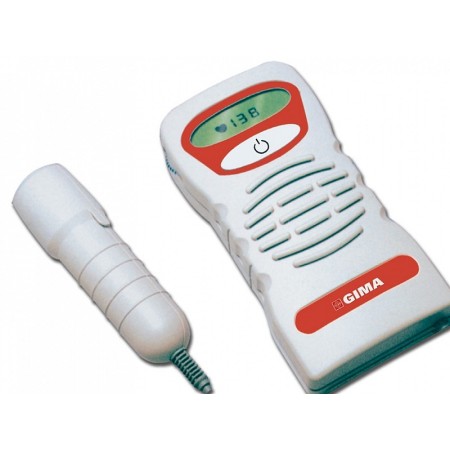

The GIMA D2003 Fetal Doppler is an advanced portable device designed for displaying fetal heartbeat on LCD displays. Thanks to its built-in processor, it minimizes background noise, ensuring clear and accurate detection.

This compact and lightweight doppler is equipped with a 2 MHz fetal probe, ideal for general practitioners and midwives. It can detect the fetal heartbeat from the tenth week of gestation, determine the location of the placenta, diagnose placenta previa, detect umbilical cord blood flow, and identify multiple pregnancies. Fetal signals are easily spotted thanks to the narrow beam transducer, with audio available via the built-in speaker or optional headphones. The volume is adjustable via a dedicated wheel.

All devices are supplied with case, conductive gel and manual in several languages: GB, FR, IT, ES, PT, DE, GR. Battery is not included. Made in the UK.

Technical features:
- Ultrasound: 2 MHz continuous wave frequency
- Transducer: 2-crystal narrow beam
- Output power: <10mW/mm² SATA
- Audio: 300Hz - 1 KHz
- Autocorrelation

FHR (Fetal Heartbeat):
- Range: 50-210 bpm
- Resolution: ± 1 bpm
- Accuracy: ± 2 bpm

Unit Controls:
- 1 On/off button
- Volume adjustment wheel

Indicators:
- 3-digit FHR LCD display
- FHR pulse icon
- Low battery icons

Power supply:
- 9V alkaline manganese battery
- Expected battery life: 8 hours

Audio Outputs:
- Optional headset
- Serial: RS232 - Jack 35 mm

Material and dimensions:
- Material: ABS/Noryl
- Dimensions: 150x75 mm
- Weight: 295 g (with transducer)

Classification:
- Class I Type B - IEC 60601-I 0120
