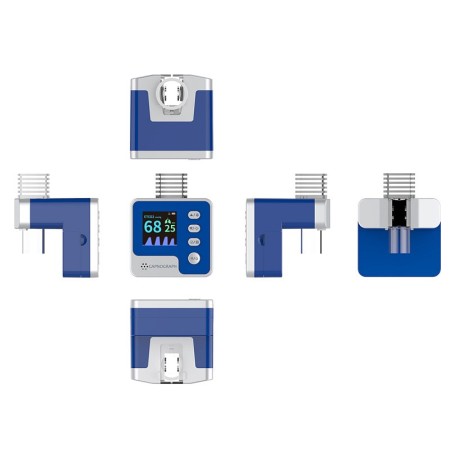

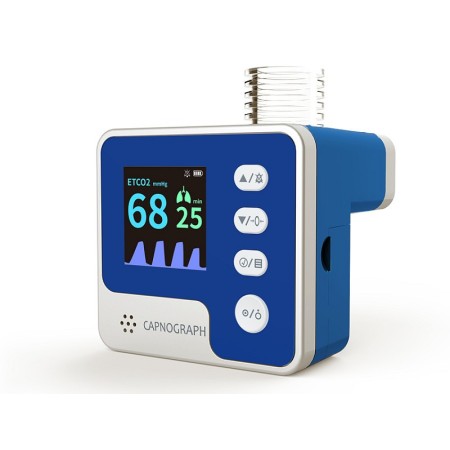

The GIMA capnograph is designed for use on adult and pediatric patients, adopting the mainstream method of measuring end-tidal carbon dioxide (EtCO2) and respiratory rate (AwRR). This device detects pulmonary ventilation and reflects the state of circulation and blood flow to the lungs, as well as providing an indirect indication of alveolar ventilation.

Functionality:
- Audible and visual alarm with silencing functions
- Alarm for exceeding EtCO2 and AwRR limits
- Adapter disabled warning
- User-calibratable zeroing
- Compensation for atmospheric pressure and temperature
- Usable at high altitudes

The capnograph has great application value in anesthesia, cardiopulmonary resuscitation, first aid, intensive care, and postoperative care. It connects to the patient's respiratory tract via an air adapter and breathing tube.

Equipment:
- Adult/child adapter
- Manual (GB, IT)
- 2 AAA batteries (included)

Technical features:
- EtCO2: measurement range 0-150 mmHg; resolution 1 mmHg
- AwRR: measurement range 2-150 rpm; resolution 1 rpm
- Display: 1.3" color LCD
- Battery life: 4 hours
- Dimensions - weight: 59x56x59.5 mm - 92 g (with batteries)
- Protection: type BF applied part, IP22
