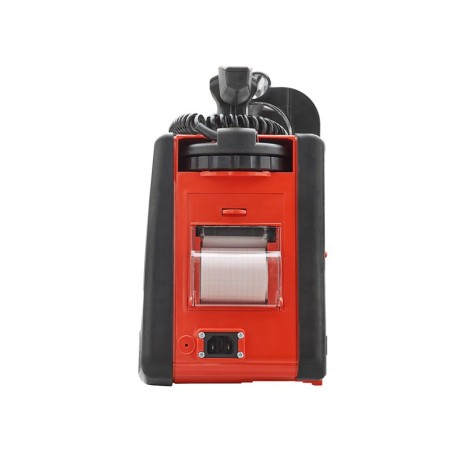

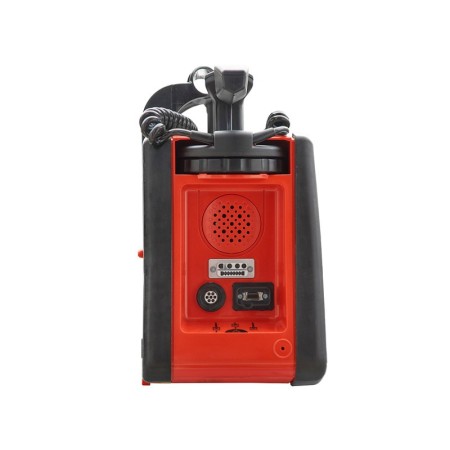

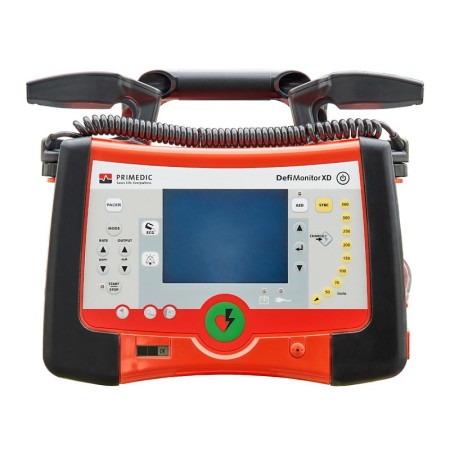

A high-quality professional multifunction tool.
DefiMonitor XD combines a compact and reliable design, the highest level of security and easy use.

Range of 8 manual (XD1, XD3, XD10, XD30) or manual + AED defibrillators (XD100, XD300, XD110, XD330) with or without SpO2 and external pacer.

Supplied with adult/pediatric electrodes, disposable adult adhesive pads, a connection cable, an ECG cable, a power cable, 1 gel tube, 1 roll of paper.

Standard software: GB, FR, DE, IT ,ES, KT, PT, RO, TR, CN.
Manual: GB, IT (DE, ES, PT, RU, UA on request).
Other software and manuals available on request: CZ, FI, HU, NL, NO, PL, RU, SE, DK, GR, LT, JU, AE, BR, CN, IR, JP, TH, US.

Dimensions: 33 x 29 x 16 cm

1 pc.

Specifications:
Defibrillation
- Pulse: biphasic, current-regulated
- Energy (automatic mode) 140-360 J
- Manual energy levels: 5 J, 10 J, 20 J, 30 J, 50 J, 100 J, 200 J, 300 J, 360 J
- Charging times: - Cardioversion: manual activation, QRS marker

ECG
-Derivation:
- Eindhoven I, II, III
- Goldberger, aVR, aVF, aVL
- Patient resistance: 23-200 Ohm
- Heart rate: 30-300 par min

Pulse oximeter
- Type Nellcor, Oximax

Pacer
- Transthoracic pacemaker
- Mode: Fixed, On-Demand, Overdrive

Thermal Printer
- Resolution: 200 dpi
- Feed rate 25 mm/s, 50 mm/s

TFT monitor, LCD-Blue-mode
- 115 x 86 mm (4.7''/120 mm diagonal)
- 320 x 240 pixels

Electrodes
- Adhesive electrodes, surface life 3 years
- Cable length 3.5 m SavePads Connect

Data management
- Removable memory 2 Gb
- Data recording Voice recording > 75 h

Feeding
- Voltage 90-264V, 50-60 Hz

Rechargeable NiCD battery:
- Capacity: 1.4 Ah Voltage: 12 V
- Discharges: 70-200 J
Monitoring: 3 h Charging Time: 2.5 h

Resuscitation guidelines
- AHA/ERC of your choice

Rules
- IEC60601-1:1988 + A1:1991 + A2:1995 (Electrical Safety of Medical Electrical Instruments)
- IEC60601-1-2:2001 (Electromagnetic compatibility)
- IEC60601-1-4:1996 + A10:1999 (Programmable Medical Electrical Systems)
- IEC60601-2-4 :2002 (Defibrillators)
- EN1789:2003 (Ambulance standard)
- Protection type class IP33
