The best portable defibrillator (automated external defibrillator) for the fast, simple, and effective treatment of sudden cardiac arrest (SCA) and guidance in administering cardiopulmonary resuscitation (CPR).

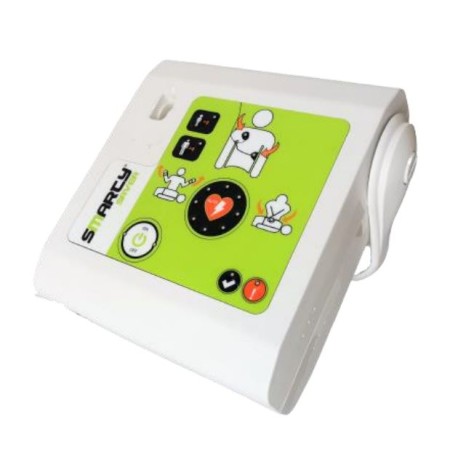

The Smarty Series is the new line of defibrillators A.M.I. Italy. It can be used easily by anyone in the medical field (e.g. ambulance, first aid, etc.) and also in the non-medical field (e.g. public or private places).

The Semi-automatic model, after checking the patient's ECG, if a shockable rhythm is detected, automatically starts charging the energy necessary for the discharge. Once ready, the operator is alerted by visual and voice message to press the shock button to defibrillate.

The resuscitation phase is then started with the voice message and the metronome.

The Automatic model, once ready for shock, will automatically provide the defibrillation shock after 5 seconds as per the voice prompt.

Model:
Code SM1-B1001: Semi-automatic
Maximum Energy:
200J (nominal)
Waveform:
Automatically adaptive exponential truncated biphasic (BTE) depending on patient impedance
Discharge Protocol:
Adult: incremental before 150J – later 200J
Pediatric: Fixed 50J
Loading time from shock alert*:
IEC60601-2-4: ≤ 9 sec with shock at 150J
≤ 12 sec with shock at 200J
Loading time since the start of the analysis*:
IEC60601-2-4: ≤ 13 sec with shock at 150J
≤ 16 sec with shock at 200J
Analysis Time:
IEC/EN 60601-2-4 4 to 15 seconds
Impedance Range:
20-200 Ohms
Sensibility:
97% (IEC/EN 60601-2-4)
Specificity:
99% (IEC/EN 60601-2-4)
Commands:
Mod. semi-automatic 4 buttons: ON/OFF, shock, patient selector (adult/pediatric)
Mod. Automatic 3 buttons: ON/OFF, patient selector (adult/pediatric)
Lights:
– Device status: 2 LED red/green

– Positioning of the PADs: 2 red LED

– Do not touch the patient: 2 red LED

– Touch the patient: 1 green LED

– Adult patient: 1 green LED

– Pediatric patient 1 LED green

– ON/OFF button: 2 green LED

– Shock button: 8 red LED

Update:
Via USB cable

External memory card
*on a 50 Ohm patient and with a new, fully charged battery

STRUCTURE
Dimensions:
200x213x71mm (handle closed)
257x213x71mm (handle open)
Weight:
1.56 Kg (with battery and PADs)
DATA LOGGING

Optional External Memory:
Micro uSD/SDHC up to 32GB
Stored data:
"testo files
AED1LOG.txt":
Detailed report of the activities of
Self-tests and ignitions
"AEDFILE.aed":
ECG trace, events
of rescue, voices, ambient audio

View
"AEDFILE.aed":
Through the "Saver View Express" data management software

Semi-rigid carry bag

Universal disposable pads

Non-rechargeable battery

User guide
