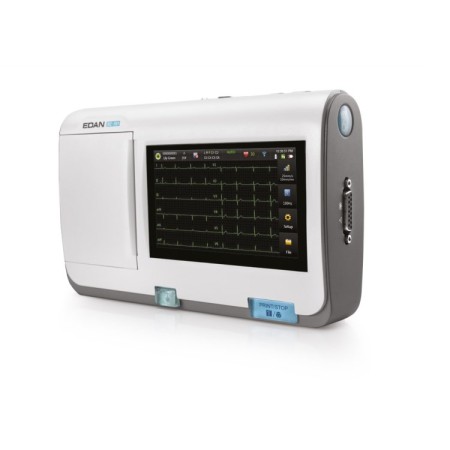

Fortolkende 3-kanals elektrokardiograf - Touch Screen Display

1.353,00 € Inkl. moms

1.288,57 € Ekskl. moms

Antal

Sikre betalinger
med kreditkort, Paypal og bankoverførsel.

Hurtig forsendelse
med BRT, DPD og FedEx kurerer

Kunde service
info@medicalistore.it eller via Whatsapp + 39.371.43.61.201

Beskrivelse

Ultrakompakt, let og let at transportere. Med høj opløsning farveskærm og touch screen system. Tovejs EKG / computerforbindelse via software (valgfrit), sporeksport til PDF. Samtidig indsamling af 12 spor, sampling op til 120 sekunder og lagring af op til 500 optagelser. Mulighed for hukommelsesudvidelse med USB flash disk og micro SD kort og ekstern print via USB port. Indbygget lithium-ion batteri. Mulighed for tilslutning af stregkodelæser (valgfrit).

Mål: 22,4 x 14,3 x 5,4 cm

Vægt: 1 kg (ekskl. batteri og papir)

Referencer
Sikkerhedsstandard	IEC 60601-1: 2005 / A1: 2012, EN 60601-1: 2006 / A1: 2013, IEC / EN60601-1-2: 2007, EN60601-1-2: 2007 / AC: 2010, 2010-1EC IEC : 2011
Klassifikation Anti-chok type:	Klasse I med intern strømforsyning Stødsikker Grade Type CF
Tekniske specifikationer
Arbejdsform	Kontinuerlig drift
EMC	CISPR 11 Gruppe 1, Klasse A
Skærm	800x480 pixel LCD
Kost
Netstrømforsyning	Driftsspænding = 100V ~ 240V Driftsfrekvens = 50 / 60Hz Strømadapterens udgangsspænding = 19V, 2A
Indbygget lithium batteri	Nominel spænding = 14,8V Nominel kapacitet = 2500mAh Opladningstid ≤ 3,5 timer Livscyklus ≥ 300 opladningscyklusser
Printer	Termisk
Termisk papir	Valset mm 80x20 mt
Effektiv bredde	72 mm
Printhastighed	5 mm/s, 6,25 mm/s, 10 mm/s, 12,5 mm/s, 25 mm/s, 50 mm/s ± 3 %
Nøjagtighed af data	± 5 % (x-akse), ± 5 % (y-akse)
HR-anerkendelse	Peak to Peak Detection System (HRV)
HR rækkevidde	30 BPM ~ 300 BPM
Nøjagtighed	± 1 BPM
Afledninger	12 spor
Anskaffelsesmetode	12 samtidige spor
A/D opløsning	24 bit
Konstant tid	≥3,2 sek
Frekvensrespons	0,01Hz ~ 300Hz (-3dB)
Følsomhed	2,5, 5, 10, 20, 10/5, 20/10 (mm/mV), AGC
Indgangsimpedans	≥ 50 Mohm (10 Hz)
Indgangskredsløbsstrøm	≤0,01 µA
Indgangsspændingsområde	≤ ± 5 mVpp
Kalibreringsspænding	1mV ± 3 %
DC offset spænding	± 600mV
Støj	≤12,5 µ Vp-p
Multi-kanal krydstale	0,5 mm
Filtre	AC-filter: On/Off DFT-filter: 0,01 / 0,05 / 0,32 / 0,67 Hz EMG-filter: 25Hz / 35Hz / 45Hz / OFF Lavpasfilter: 300Hz / 270Hz / 150Hz / 100Hz / 75Hz
CMRR	≥140dB (AC tændt) ≥110dB (CA Off)
Sampling frekvens	1600Hz
Pacemaker detektion
Amplitude	± 2 mV ~ ± 700 mV
Længde	0,1 ms ~ 2,0 ms
Sampling frekvens	16.000 / sek / kanal
