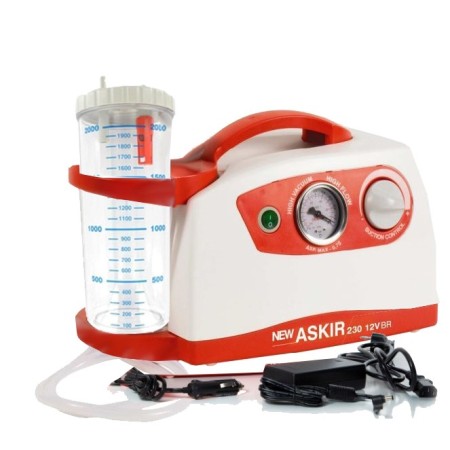

NEW ASKIR 230/12V BR is an electric aspirator for the suction of bodily, oral, nasal and tracheal fluids in adults or children.

It can work with three types of power supply: with AC/DC power supply supplied, with internal power supply (Pb battery 12V 4A) or with car cigarette lighter cable (12V 4A) approved for continuous use.

The device is equipped with an audible alarm and visual indication (LED) for low battery status indication, and is equipped with vacuum gauge (bar & kPa) and vacuum regulator.

Vacuum cleaner compliant with EN 60601-1-11 standard and with IP21 degree of protection.

MAIN USES:
- Patient transfer
-Tracheostomy
- Home care
-Emergency

NDT: Z120105

BD/RDM : 1072767

Feeding:
- 14V 4A with Universal AC/DC Adapter mod. UE60-140429SPA1 (100-240V~ – 50/60Hz – 100VA)
- Internal Rechargeable Pb Battery (12V 4A). Autonomy 80 min. Charging time 240 min
- Car Cigarette Lighter Cable (12V 1.9A)
- Motor: Dry piston pump (no lubrication and/or maintenance)
- ISO 10079-1Classification: HIGH VACUUM / LOW FLOW
- Max suction (adjustable): -0.75 Bar -75 kPa -563 mmHg
- Free airflow: 16 l/min
- Noise level: 63.0 dB
- Operation: Continuous
- Weight: Kg 3.50
- Dimensions: 35 x 21 x 18 cm
- Warranty Years: 2
- Place of Manufacture: Italy

- 2 liter Autoclavable jar with overflow valve
- Autoclavable Silicone Tubes 6x10 + Conical Connector ø 8-9-10 mm
- Antibacterial and Hydrophobic Filter (single-patient)
- CH20 suction probe
- Universal AC/DC power supply with Italian socket
- Cigarette lighter cable 12V DC
