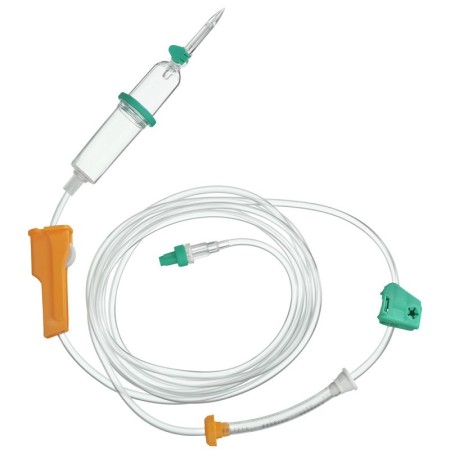

SET INFUSOMAT PLUS SAFESET STANDARD
B. Braun Infusomat Compact Plus pump outflow for the infusion of drugs, infusion solutions, chemotherapy and parenteral nutrition through the appropriate infusion routes.
Drill
- Dual-way, liquid and air
- Equipped with spaced air and liquid holes to minimize the recall of air bubbles in the liquid way
- Free of roughness so as not to cause fragments to detach from the elastomeric membrane of bottles/pouches/bottles during perforation
- Calibrated to obtain 20 drops of distilled water per milliliter

Drip chamber
- High transparency
-Wide
- Easily compressible at the bottom for liquid recall
- Equipped with an AIR-STOP filter at the base: three-dimensional filter that retains particulate matter (> 15 μm) and prevents air from passing inside the pipe following the emptying of the drip chamber

Piping
(refers to Standard Infusomat Set)
- Inner diameter: 3.0 mm
- Outer diameter: 4.1 mm
- Bolus volume: 7 ml/m at 40°C and 2 bar
- Total length 240 cm, pump - patient section 150 cm
- High transparency

Precision Roller Clamp
-Ergonomic
- Equipped with a non-slip knurled wheel
- Equipped with a hook for positioning the end of the outflow during filling and the stand-by period before connecting to the patient
- Equipped with a perforator port for safe disposal

Segment for Pump
- Section adhering to the peristalsis of the positive displacement pump
- Inner diameter: 4.0 mm
- Outer diameter: 6.0 mm
- High resistance
- Non-deformable

Risk Class: Iia
