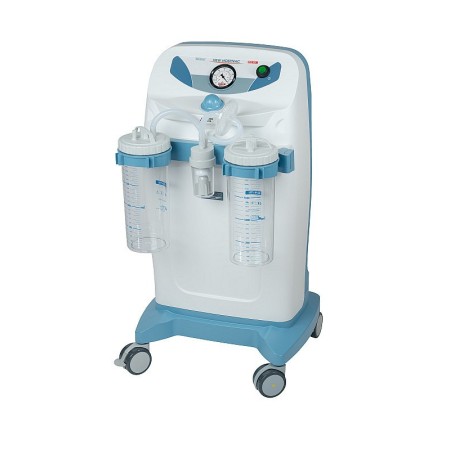

NEW HOSPIVAC 350 surgical aspirator with 2 x 2l vessels, foot control and flow diverter (RE 410356/01)

NEW HOSPIVAC 350 is a surgical aspirator powered by 230V ~ / 50Hz electricity, to be used for the suction of body fluids (such as mucus, phlegm and blood) and equipped with 4 antistatic wheels, two of which with braking device and drag handle.

Appliance designed to offer ease of transport and continuous use.

Thanks to these features and the performance it is equipped with, this device is particularly suitable for use in the operating room, hospital ward, for the aspiration of body fluids and for applications in gynecology and dermatology (liposuction).

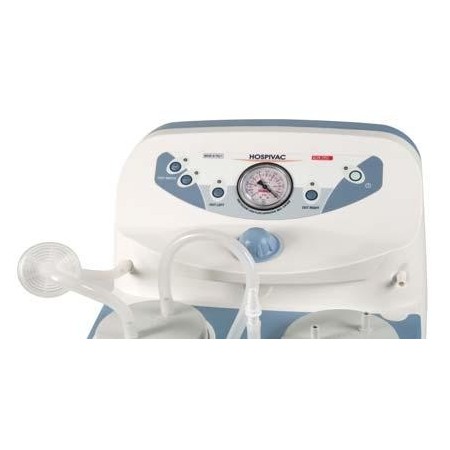

Built with a plastic body with high thermal and electrical insulation in compliance with European safety regulations, the device is supplied with 2 complete sterilizable polycarbonate suction jars and with overflow valve and is equipped with a suction regulator and vacuum gauge located on the front panel. A version with foot control and collection flow diverter is available on request.

The electronic management system on the front panel allows suction to be carried out via foot pedal control and to be able to vacuum liquids in both jars without turning off the equipment and connecting again to the second jar.

ELECTRONIC DIVERTER from one vessel to another

MAIN USES:
-Emergency
-Operating room
- General Surgery
-Neurosurgery
- Liposuction
- Dental Practice
-Gynaecology

Code: RE 410356/01

MODEL : FULL 2

NDT: Z120105

BD/RDM : 339694

Type (Directive 93/42/eec): Class IIA medical device
Model: NEW HOSPIVAC 350
UNI EN ISO 10079-1: high vacuum / high flow
Power supply: 230V~/50Hz
Power consumption: 230 VA
Fuse: f 1 x 4a 250V
Max suction (without vessel connection): -90kpa / -0.90 bar / -675mmHg
Maximum suction flow (without vessel connection): 60 l/min
Weight: 13 kg
Dimensions: 460 x 850 (h) x 420 mm
Operation (at 35°C and 110% operating voltage): continuous
Silicone tube size: ø 8x14 mm
Vacuum indicator reading accuracy: ± 5%

Operating conditions
Ambient temperature: 5 ÷ 35°c
Room humidity percentage: 30 ÷ 75% rh
Elevation: 0 ÷ 2000m s.l.m.

Storage and transport conditions
Ambient temperature: -40÷ 70°c
Room humidity percentage: 10 ÷ 100% RH

- 2 complete suction vessels 2000cc
- Conical fitting
- Transparent silicone tubes Ø8x14mm
- Antibacterial and hydrophobic filter
- Foot control

ELECTRONIC DIVERTER from one vessel to another


APPROXIMATE DELIVERY TIME: 10 days
