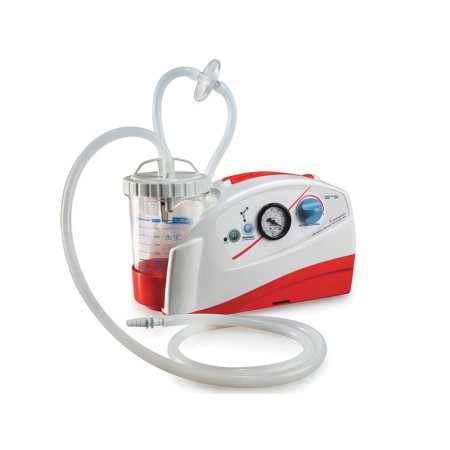

NEW ASKIR 118 BASIC SURGICAL ASPIRATOR - AMBULANCE ASPIRATOR WITH BRACKET - 12 V.

Device for oral and, nasal and tracheal aspiration of liquids
in the adult or child.

Thanks to the 2 power supply modes, it is particularly suitable for use on board ambulances (via a special bracket) The pressure switch guarantees intelligent use by reducing power in the absence of vacuum, decreasing noise and increasing battery autonomy.

MOTOR Dry piston pump
FEEDING
Power supply:
Lithium-ion battery: Car cable/ambulance bracket:
IN: 100-240 VAC; 50/60 Hz; 100 VA
OUT: 14 Vdc 4.29 A
14.8 Vdc; 5.2 A
12 Vdc; 4 A
CLASSIFICATION
ISO 10079-1
High vacuum / High flow
MAX SUCTION
(ADJUSTABLE) - 0.75 bar -75 kPa - 563 mmHg
FREE AIR FLOW 36 L/min
NOISE LEVEL 54.7 – 68.2 dB(A)
(depending on the power supply)
OPERATION Continuous (with mains)
IP22 IP RATING
WEIGHT 2.50 kg
SIZE 35 x 15 x 19 cm
WARRANTY 2 years

Designed for emergencies
Designed to be easily and safely installed in ambulances, the device is lightweight, small and powerful.
Power saving mode
Energy consumption is minimized during idle, ensuring the best performance during vacuuming.
Long-lasting battery
Powered by a small but durable lithium battery that can be recharged countless times.
Non-stop operation
In order to ensure the best performance, the device can work without interruption 24/24h.
Proximity Sensor
Thanks to this technology, the device can be easily switched on or off without contact.

1000 ml autoclavable jar made of Makrolon
AUTOCLAVABLE SILICONE TUBING
2 Tubes (ø 8x14 mm x 18 cm) + 1 patient tube (150 cm).
TAPER CONNECTOR
ø 10-11-12 mm.
ANTIBACTERIAL AND HYDROPHOBIC FILTER Single patient.
CANNULA CH20
UNIVERSAL AC/DC POWER SUPPLY
100-240V 50/60Hz (UE60-140429SPA1 or UES65-140429SPA1)
12V CAR CABLE

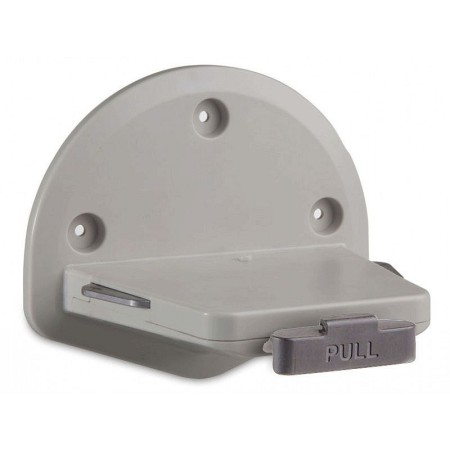

AMBULANCE BRACKET
TRANSPORT BAG
