- Small, lightweight and easy to carry
- One button for measurements

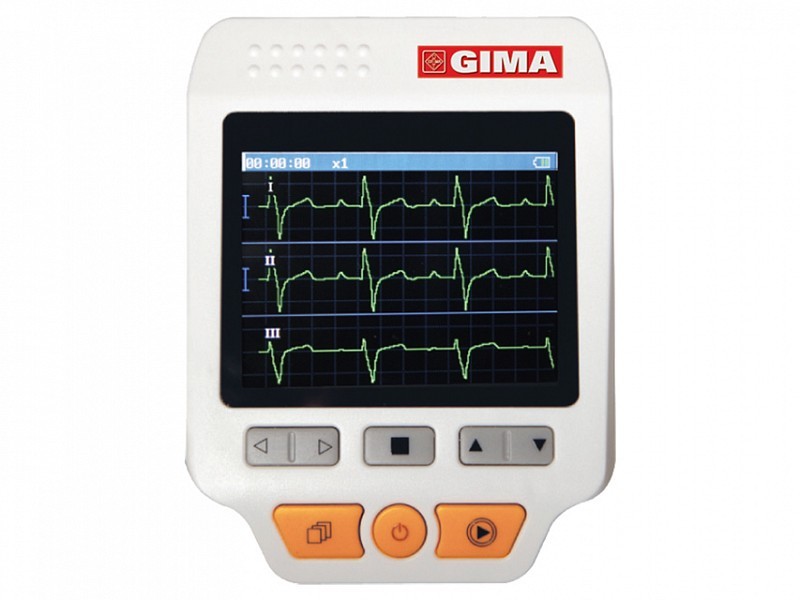

- Clear ECG trace with interpretation of the results on a 3.5'' TFT color display
- Up to 19 types of analyses and reports
- Very large built-in memory: 24 hours of memory for 1-channel tracks and 8 hours of memory for 3-channel tracks
- Fast measurements: with integrated electrode, on the palm of the hand, torso or leg or via external leads (works with optional peripheral and precordial electrodes)
- Data management to review or delete recordings locally or to download them to PC

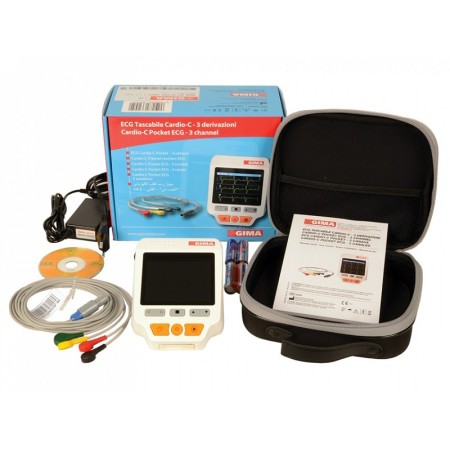

Supplied with ECG reading software, USB cable, transformer, 4-PIN ECG cable, 25 disposable electrodes, manual (GB, FR, IT, ES, DE, PT).

Methods of ECG measurements (direct or lead):
- Directly on the leg
- Directly on the torso
- Directly on the palm or wrist
- With leads, clamp electrodes 33364
- With leads, 33327 torso electrodes

1 pc.

Specifications:
- Pulse measurement range: 30 - 240 bpm
- Pulse accuracy: ± 2 bpm or ± 2% whichever is higher
- ECG bandwidth: 0.5Hz - 40Hz
- Internal noise level: = 30 μVp-p
- Display scale: 5.0 mm/mV ± 10%
- Common Mode Rejection Ratio (CMRR): = 60 dB
- Waveform scan rate: 20 mm/s ± 10%
- Input current loop: = 0.1 μa
- Input impedance: = 5 mO
- Power supply: 4 AA alkaline batteries
- Supply voltage: 4.4 to 6 ~ VDC
- Average operating current Max: = 160 mA
- Auto-off: adjustable from 1 to 5 min
- Low battery indication: V DC ± 0.2 VDC
- TFT display with real colors 3.5''
- Compact dimensions: 13 x 9.5 x 3.2 cm
- Internal memory 32 MB
